Feature:
1. The rated test voltage is 500V, with a measurement range of up to 1000M Ohm and has the ability to measure AC voltage.
2. Wide measurement range, with locking button, easy for you to choose and use.
3. Can measure AC voltage below 500V (full scale linear indication).
4. Low resistance value buzzer alarm, reminding you to pay attention and observe.
5. The battery voltage status indicator light (BATT CHECK light on) also serves as a high voltage indicator for the operation of the megohmmeter.
Specification:
Features:
The rated test voltage is 500V, with a measurement range of up to 1000M Ohm and has the ability to measure AC voltage.
Wide measurement range, with locking button, easy for you to choose and use.
Can measure AC voltage below 500V (full scale linear indication).

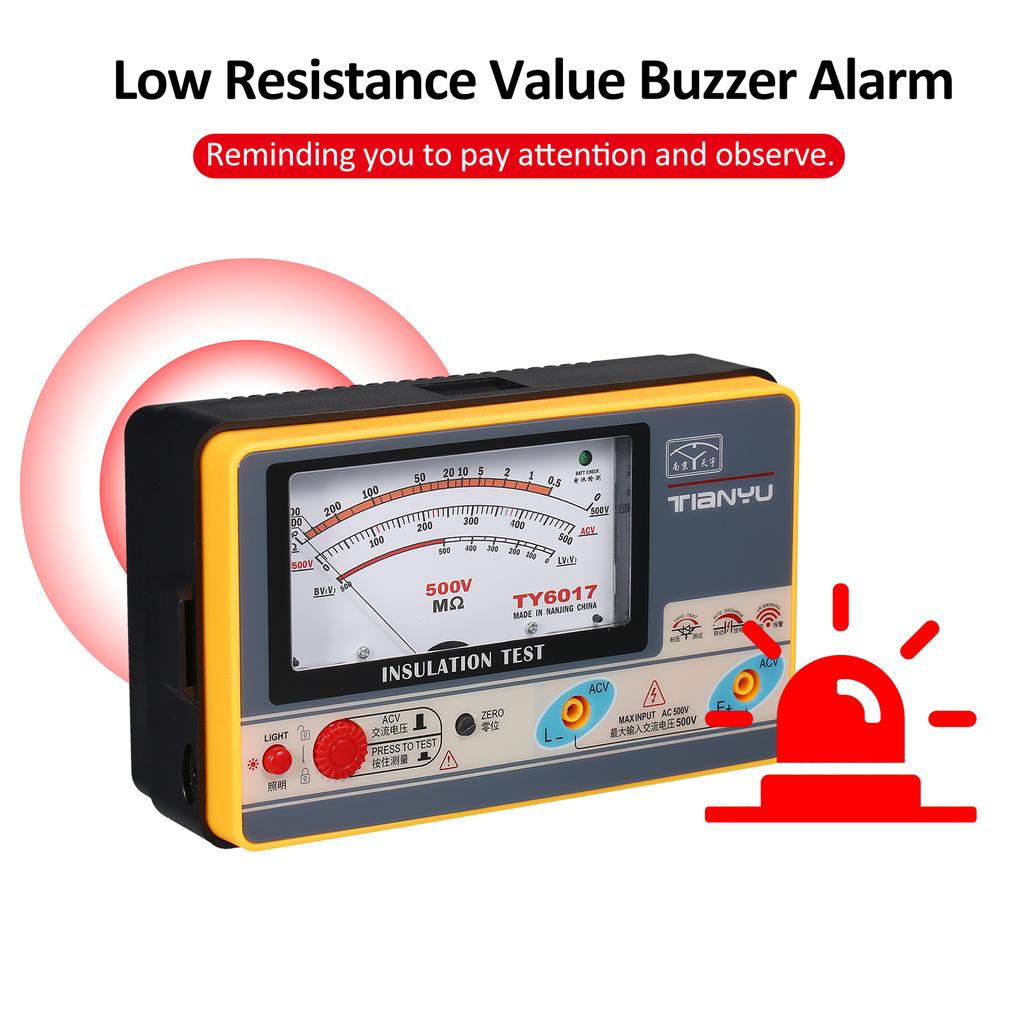

Low resistance value buzzer alarm, reminding you to pay attention and observe.
The battery voltage status indicator light (BATT CHECK light on) also serves as a high voltage indicator for the operation of the megohmmeter.
Additional external DC power supply (charging) socket for your convenience.
Widened dial design, wider indication range, and more accurate fault diagnosis.
The dial illumination function is convenient for you to use in dim environments and accurately read measured values.

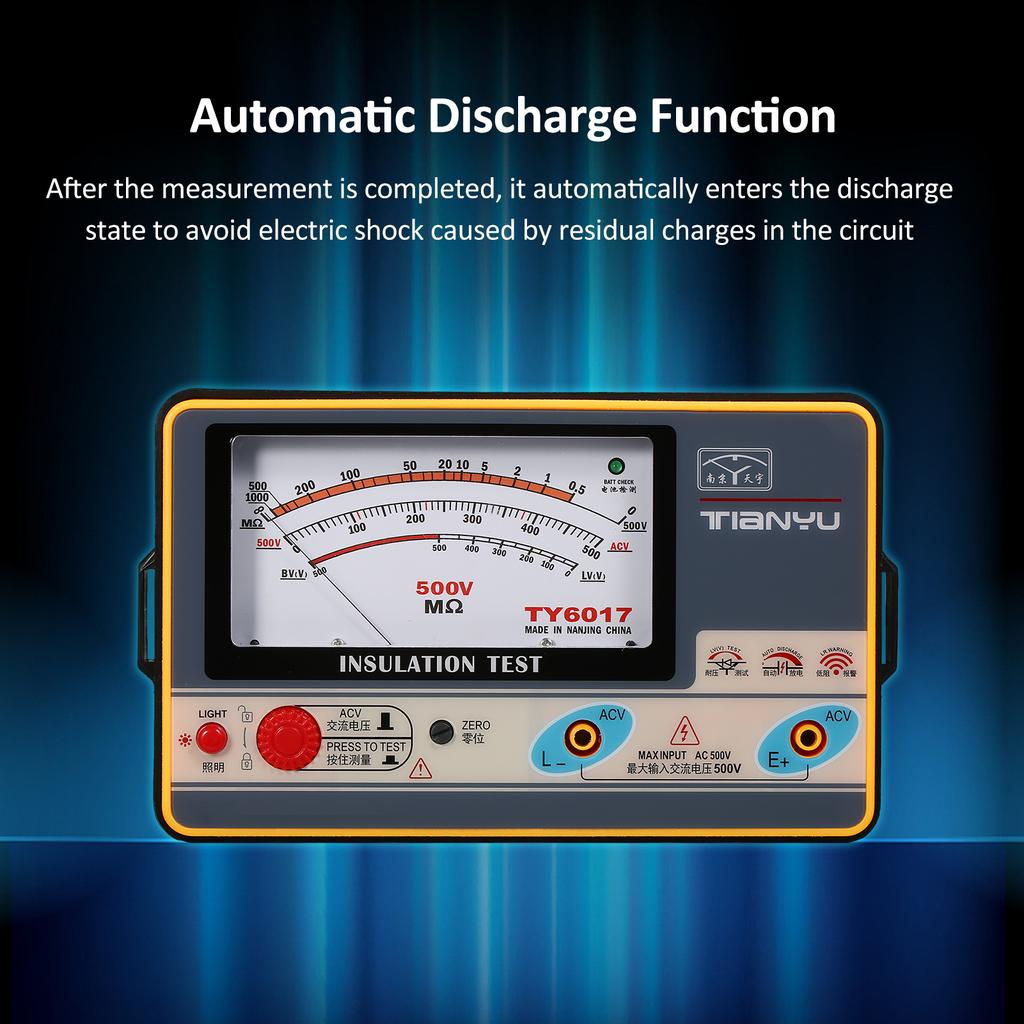

Automatic discharge function: After the measurement is completed, it automatically enters the discharge state to avoid electric shock caused by residual charges in the circuit.
Strong output load capacity, with a maximum output short circuit current of 0.55mA.
Add a transistor withstand voltage measurement scale to directly read the withstand voltage value (load voltage) of the tested material.
Fully functional, higher accuracy, convenient and reliable operation, it is an excellent electrician testing instrument.
Comes with a pair of test s and alligator clips, good quality zipper bag for carrying and storage.
It is used to measure the insulation resistance of various electrical equipment and insulation materials such as transformers, motors, cables, switches, and electrical appliances, and to maintain, test, and verify famous electrical equipment.
Specifications:
Material: ABS
Rated Test Voltage: 500V
Output Voltage: 90 120percent of the test rated voltage
Output Short Circuit Current: Max. 0.55mA
Measurement Range: 0 1000M
Transistor Withstand Voltage Measurement: 500V (0.5mA)
Discharge Resistance: 10M
Automatic Alarm: <2M (when 1000V)
Voltage Measurement: ACV500V (50Hz)
ACV Measurement Error: ±5percent
Battery Detection: LED display
Insulation: Between the core circuit and the casing: >50M
Operating Temperature Humidity: 0 40 celsius , <75percent (non condensing)
Storage Temperature Humidity: 10 50 celsius , <85percent

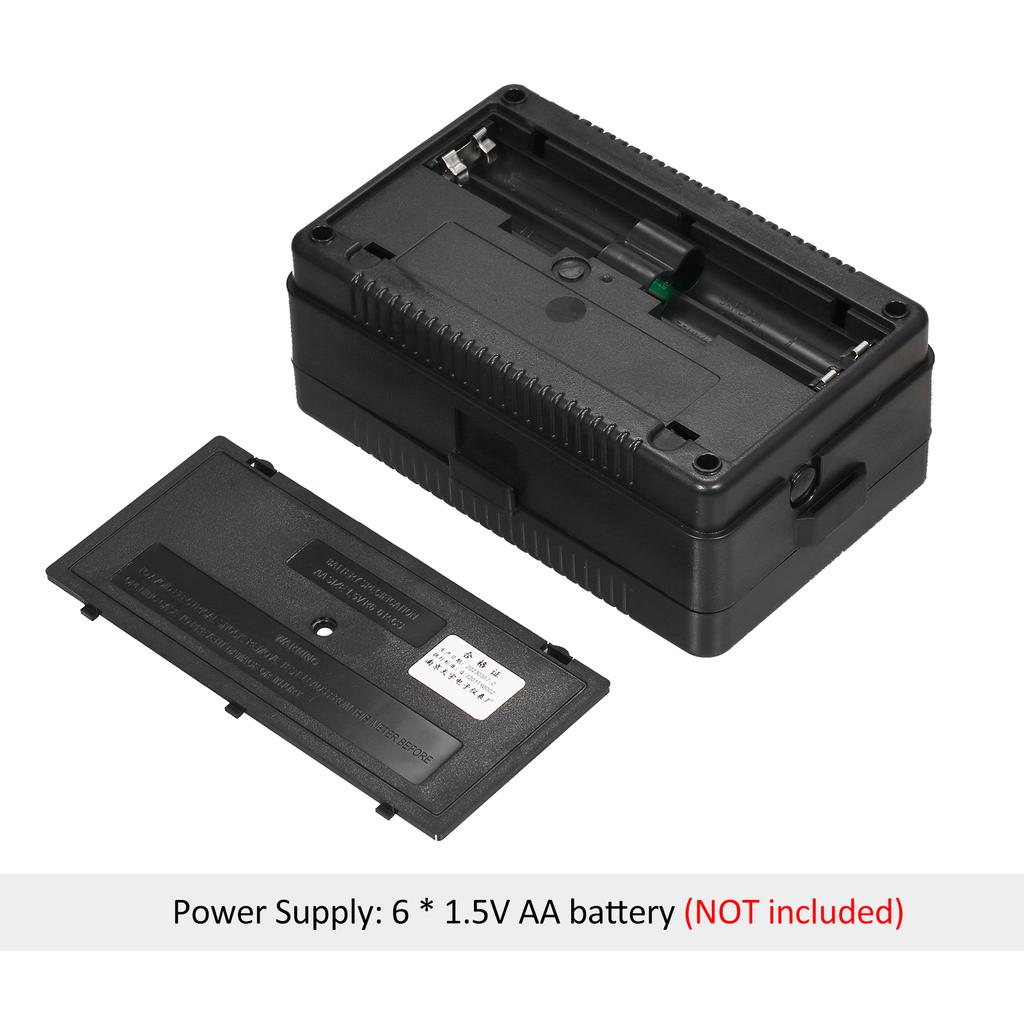

Power Supply: 6 * 1.5V AA battery (NOT included)
Item Size: 176 * 110 * 70mm 6.93 * 4.33 * 2.76in
Item Weight: 508g 17.93oz
Package Weight: 799g 28.20oz
Package Size: 21.5 * 16.5 * 8cm 8.46 * 6.50 * 3.15in
Package List:
1 * Insulation Resistance Tester
1 * Strap
2 * Test
2 * Alligator Clip
1 * Carrying Zipper Bag
Package List:
1 * Insulation Resistance Tester
1 * Strap
2 * Test
2 * Alligator Clip
1 * Carrying Zipper Bag
