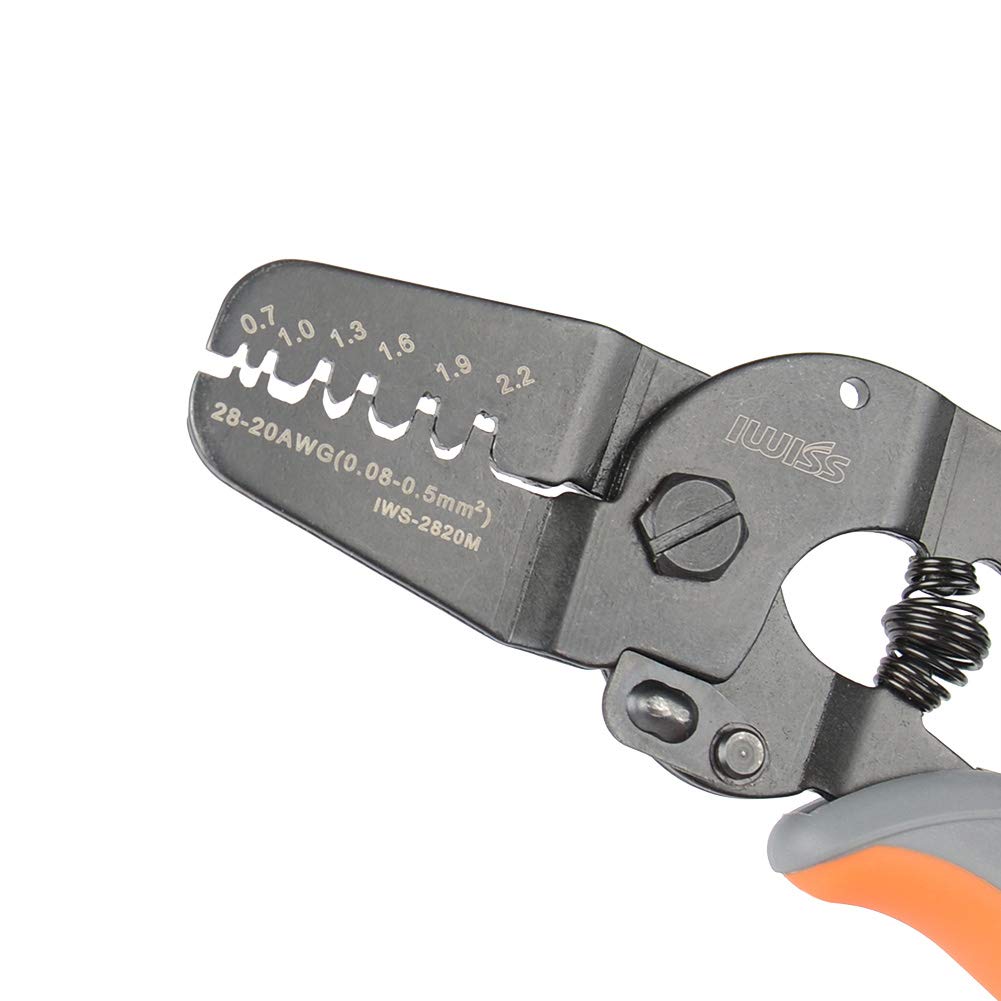

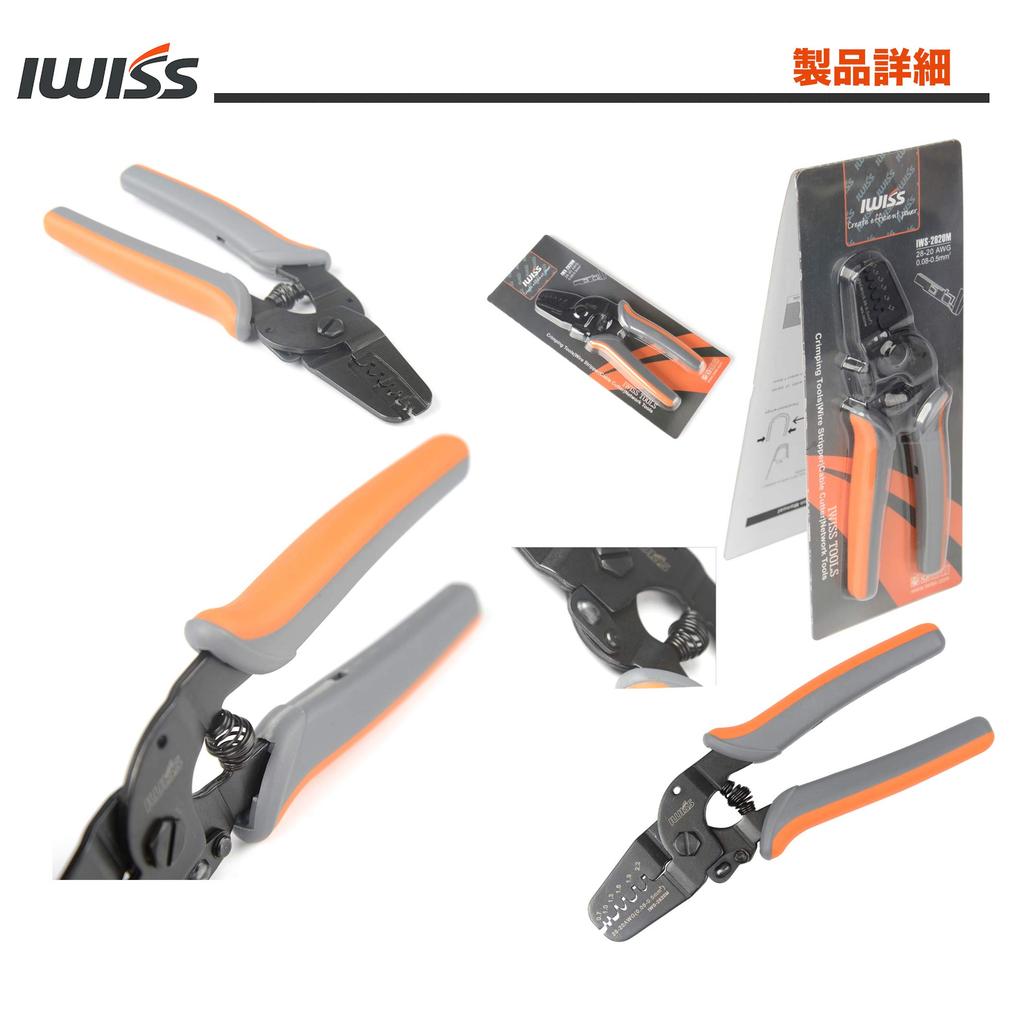

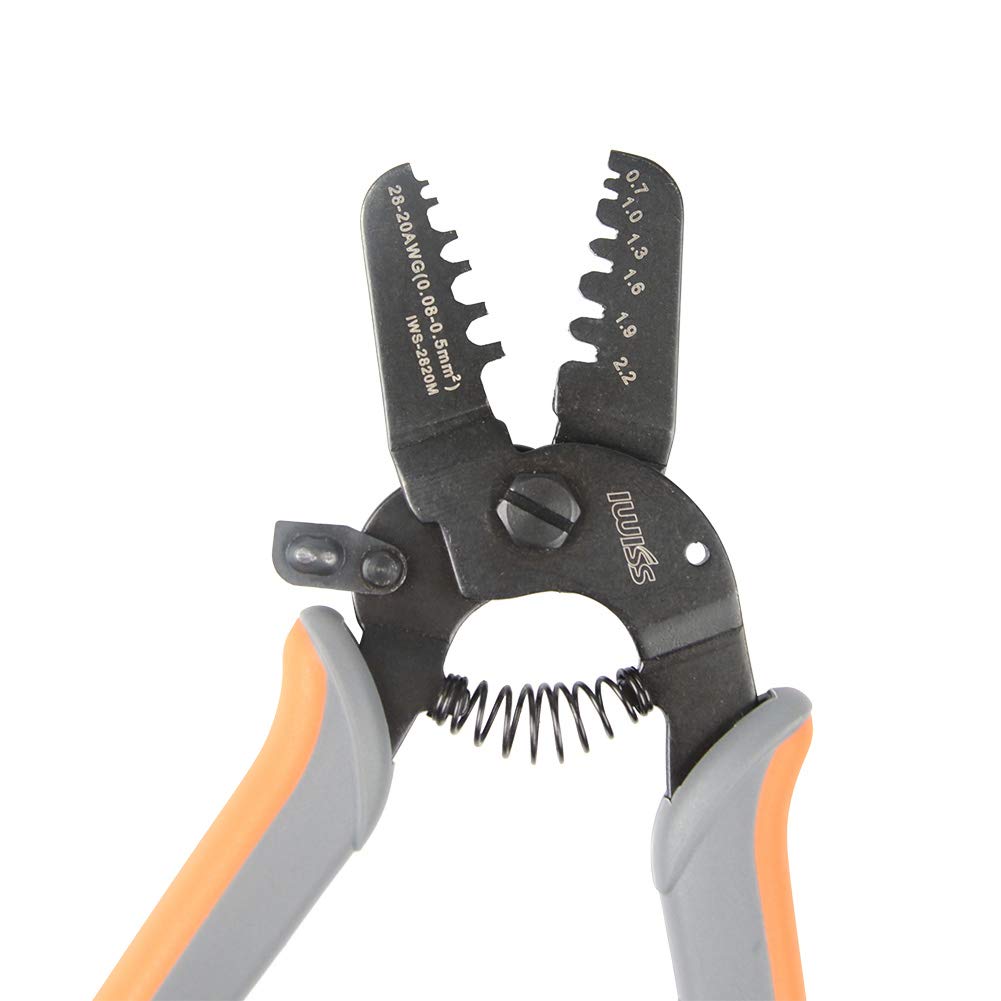

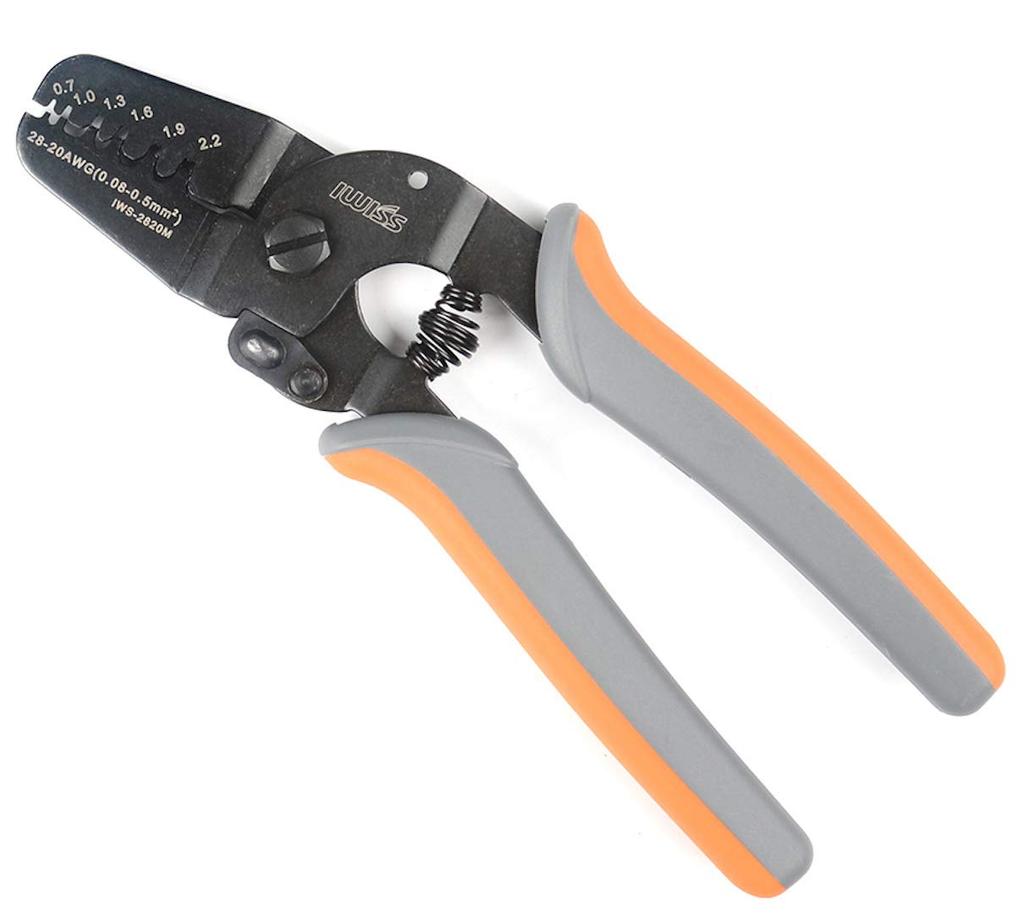

IWISS Precision Crimping Pliers for Open Barrel Terminals, 0.08-0.5mm, 2-Piece Set, IWS-2820M

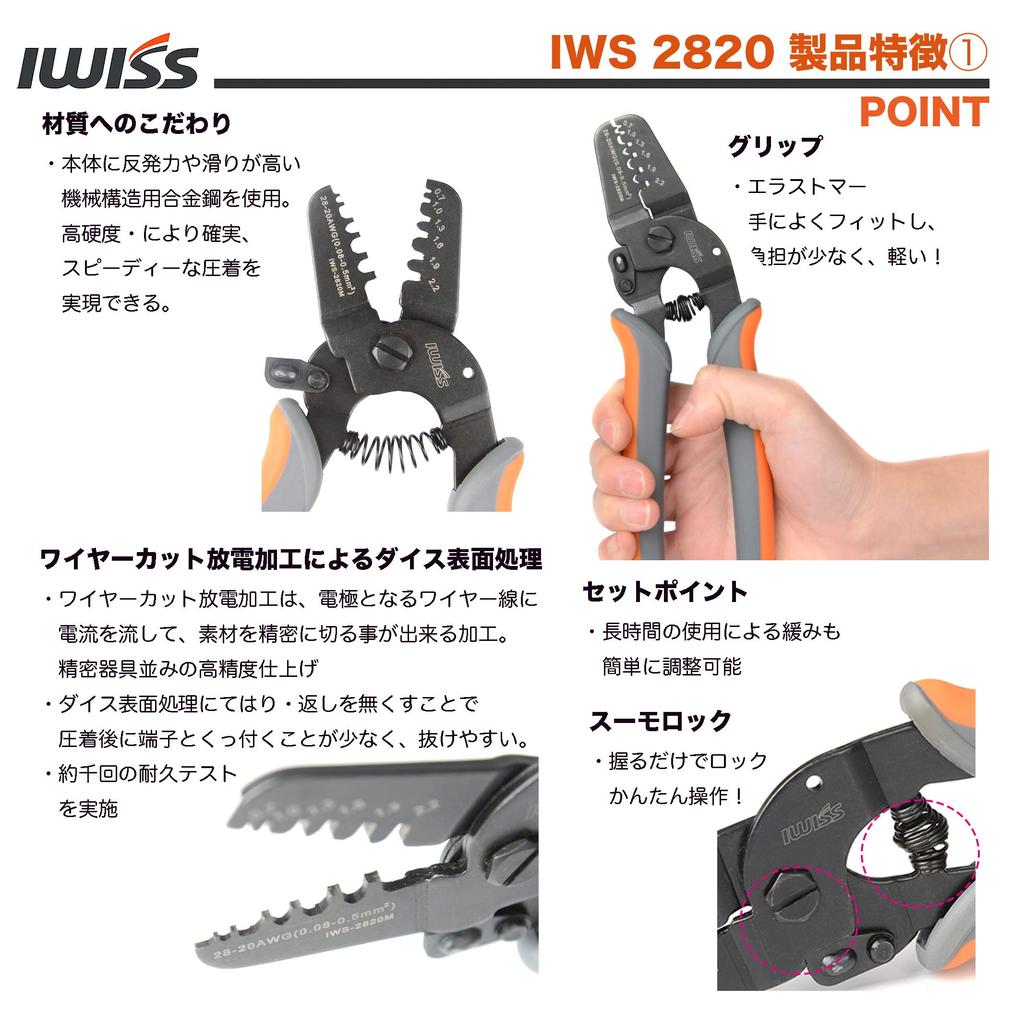

Crimping capacity: 0.08-0.5mm² Product dimensions: 180(L)x60(w)x12(h)mm Die width: 0.7mm, 1.0mm, 1.3mm, 1.6mm, 1.9mm, 2.2mm Each die thickness: 1.0tmm, 1.0tmm, 1.5tmm, 1.5tmm, 2.0tmm, 2.0tmm Compatible wire diameters: 0.20-0.32mm, 0.32-0.51mm, 0.51-0.64mm, 0.64-0.81mm Supported core sizes: up to 0.08mm², 0.08~0.21mm², 0.21~0.33mm², 0.21~0.52mm² IWS-2820 Micro Pin is our latest design pin, applicable to AWG 28-20 (0.08-0.5mm2) cylindrical terminals and connectors. The dual hinge mechanism and ultra-precision pinout provide a reliable, accurate connection every time. This micro-insulation tool is suitable for typical JAM, Molex, JST and TyCO terminals and other U-shaped barrel terminals and connectors. standard: Model: IWS-2820 Crimping range: AWG 28 - 20 (0.08 - 0.5 mm2). Length: 18 mm Weight: 0.2 Kg Application: Barrel Connector The set includes one IWS-2820 tool. Features Ultra-precise crimping work ensures perfect crimping effect. The die section has a stepped thin finish, going from 2.0mm to 1.0mm. The double hinge mechanism allows the mouth to be parallel and the seizure to be completed directly. We offer a variety of mini-micro U-shaped barrel and press-on terminals ranging from AWG28-20. The packaging has detailed operating instructions, which are applied in graphs and scan tables.
