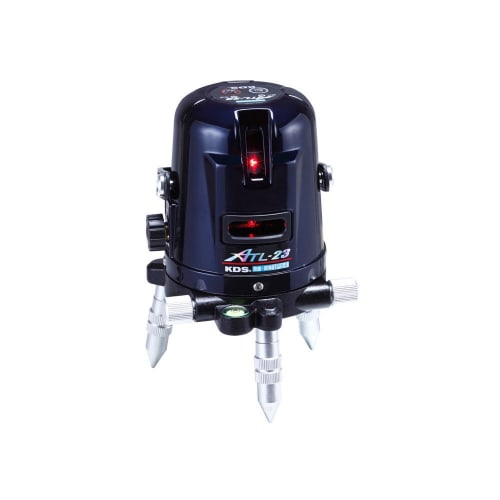

Muratec KDS Laser Level ATL-23 Body ATL-23

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

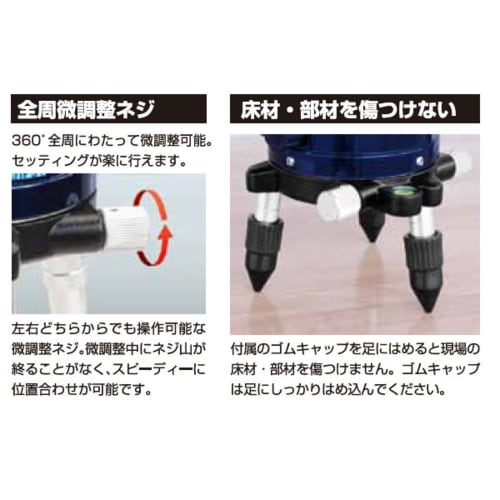

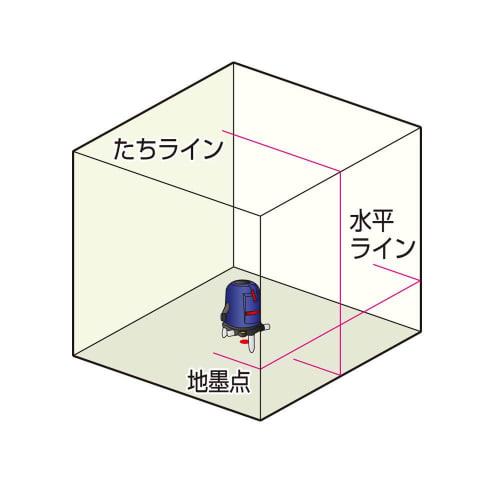

1. KEY FEATURES: - Main set contents: Storage case, laser goggles (LG2), 3 AA alkaline batteries for main unit, 3 rubber caps, instruction manual - Vertical lines, horizontal lines, ground dots - Light source: 635nm red semiconductor laser (background: 650nm) Light output: 1mW or less Laser safety standard: Class 1M (JIS C6802) - Horizontal line accuracy: ±1mm/10m Vertical line accuracy: ±1mm/10m Horizontal line coverage angle: Approx. 120° Vertical line coverage angle: Approx. 135° Line width: Approx. 2mm/5m - Braking method: Magnetic braking method Automatic correction range: Approx. ±4° Tilt alarm: Laser light flashes at approx. ±4° or more Fine adjustment range: 360°, fine adjustment possible over the entire circumference

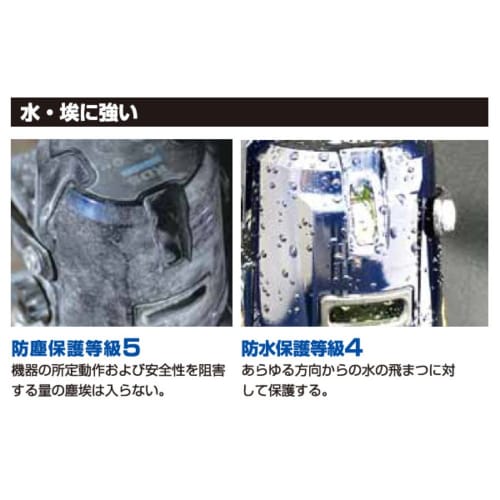

2. PRODUCT DESCRIPTION: Suitable for outdoor use, when set to outdoor mode with the outdoor/indoor mode selector switch, the receiver can be used. Protection grade: IP54, the interior is protected against fine dust and water that inevitably adheres, so it can operate safely. [Dustproof standard 5: No amount of dust that would impede the specified operation and safety of the device can enter (dustproof type)/Waterproof standard 4: Water splash (protects against water splash from all directions)] Do not use laser irradiation or look directly at the beam with optical instruments. Class 1M laser product. Maximum output 1mW wavelength 630~670nm.

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 2.56 kg - Dimensions: 30.6 x 26.4 x 26.2 cm

4. SPECIFICATIONS: - Brand: KDS - Model Number: ATL-23 - Manufacturer: Muratec Kds
