NEEWER Rail Bar Vixen Style Dovetail Plate Dovetail Plate with M6 Camera Screw Metal Mounting Plate Saddle Telescope Mount Adapter OTA for Equatorial

★★★★★★★★★★★

We are selling from Japan. Our Products are Authentic only.

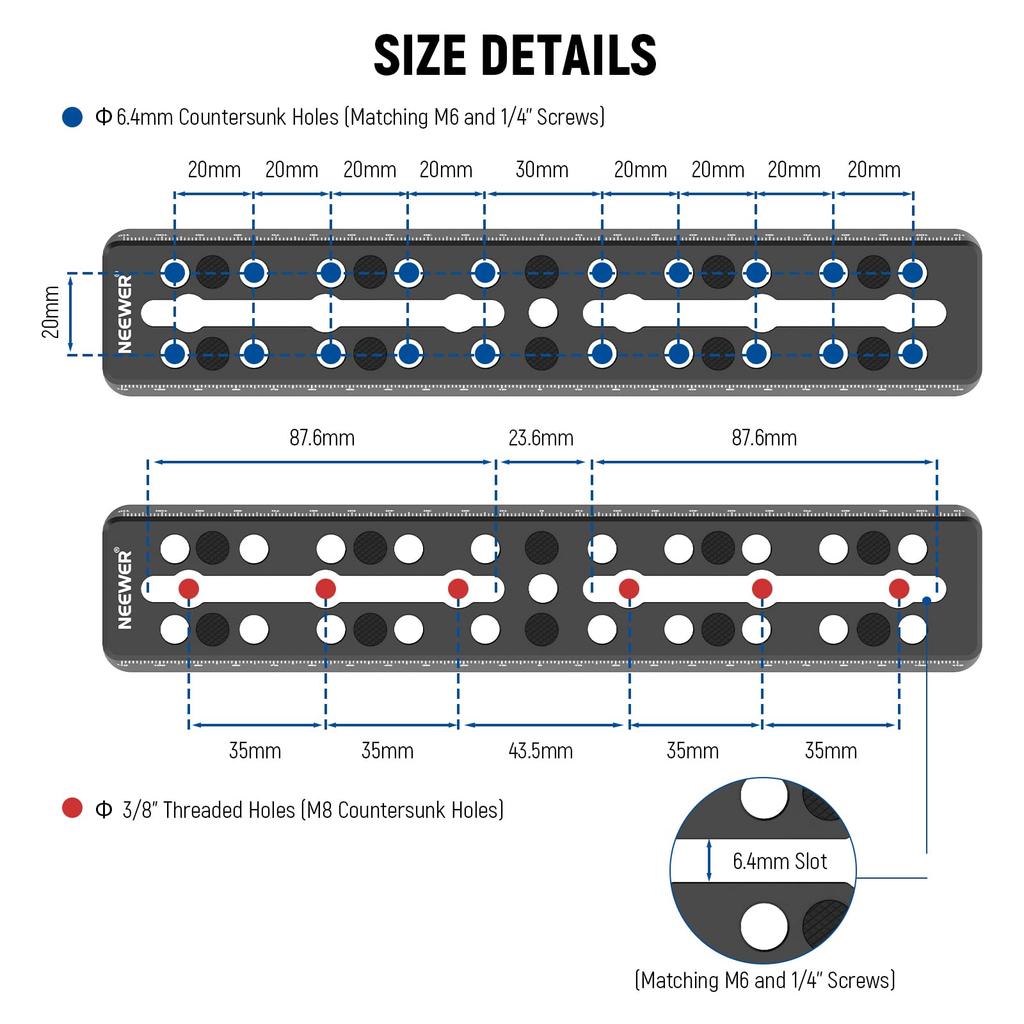

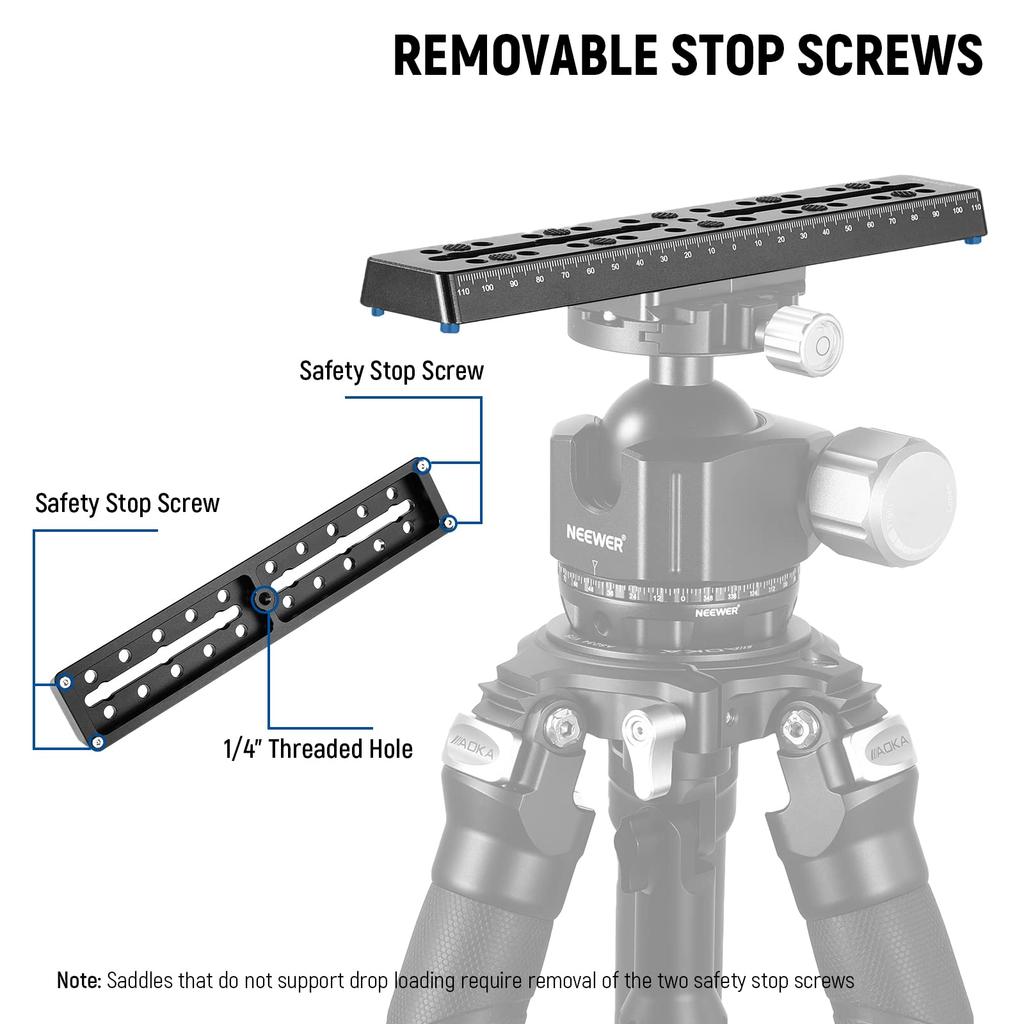

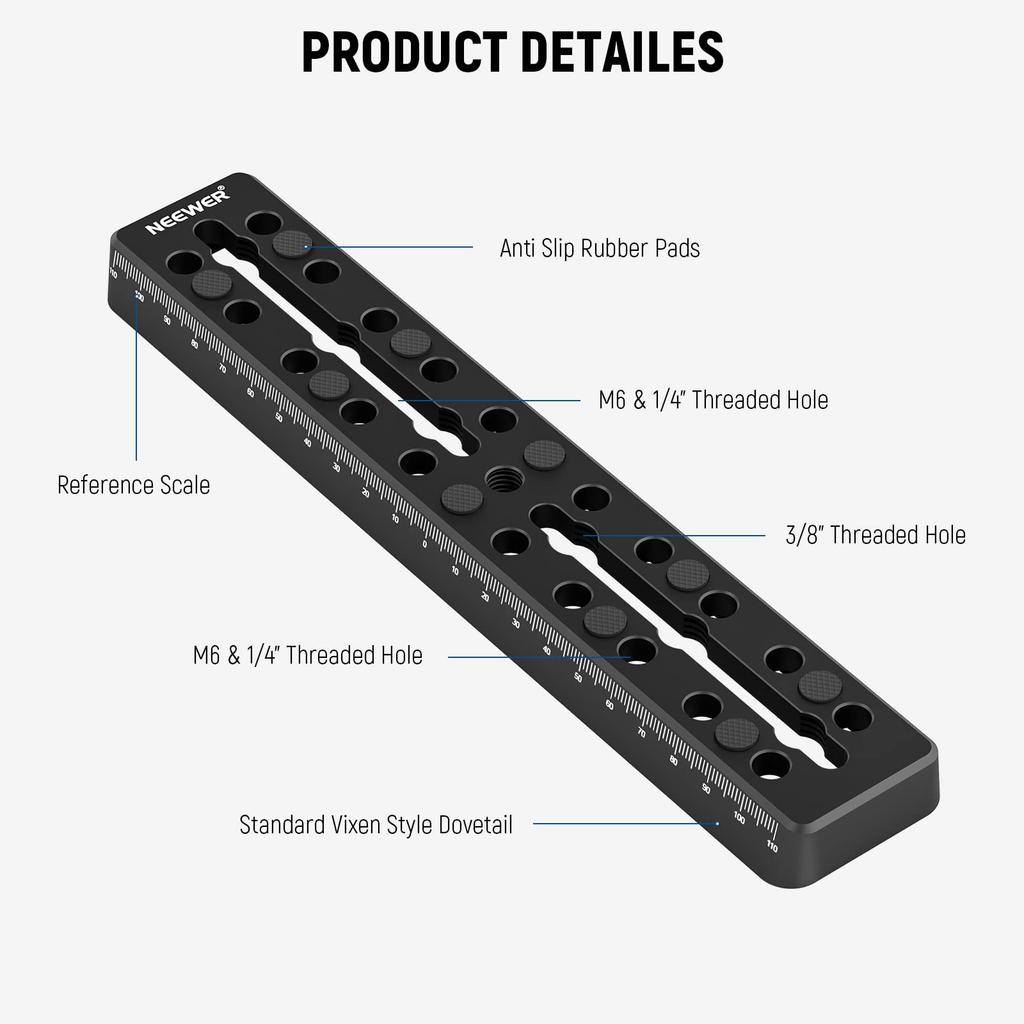

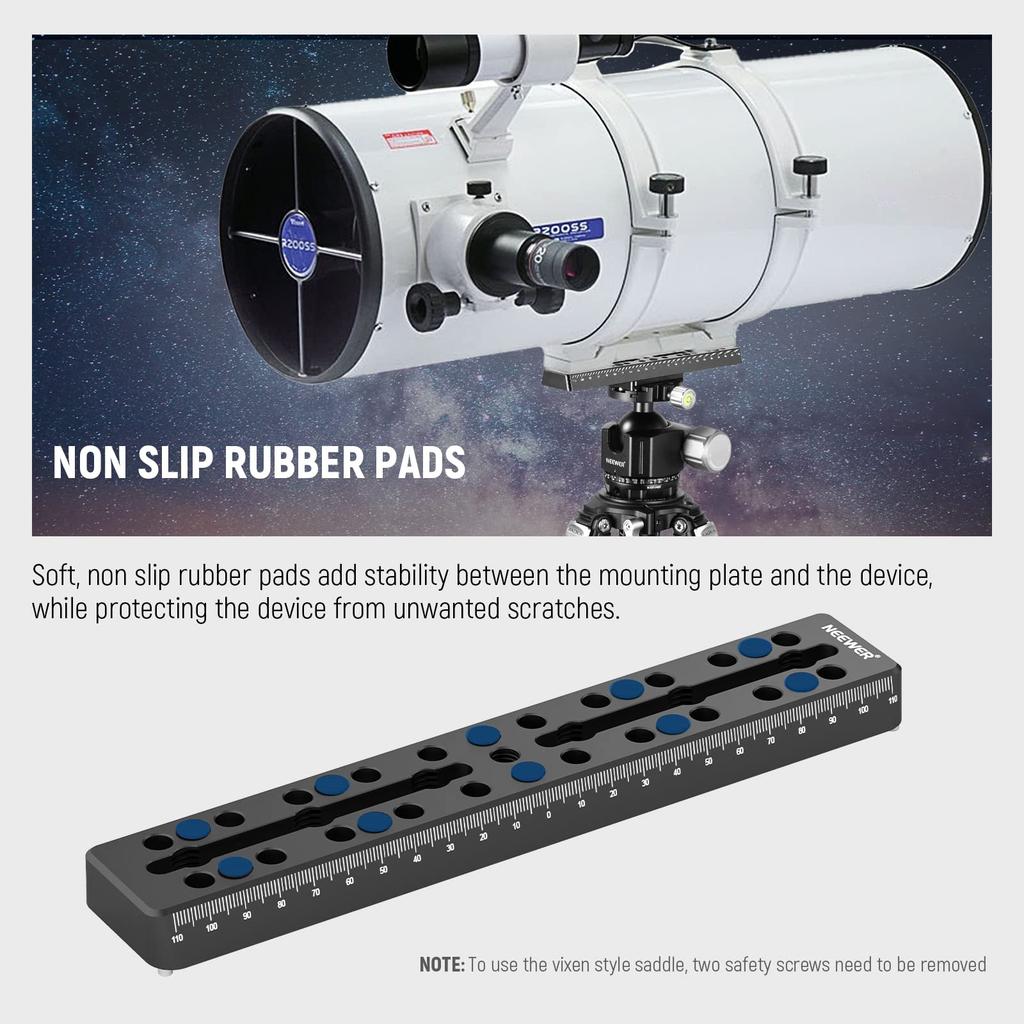

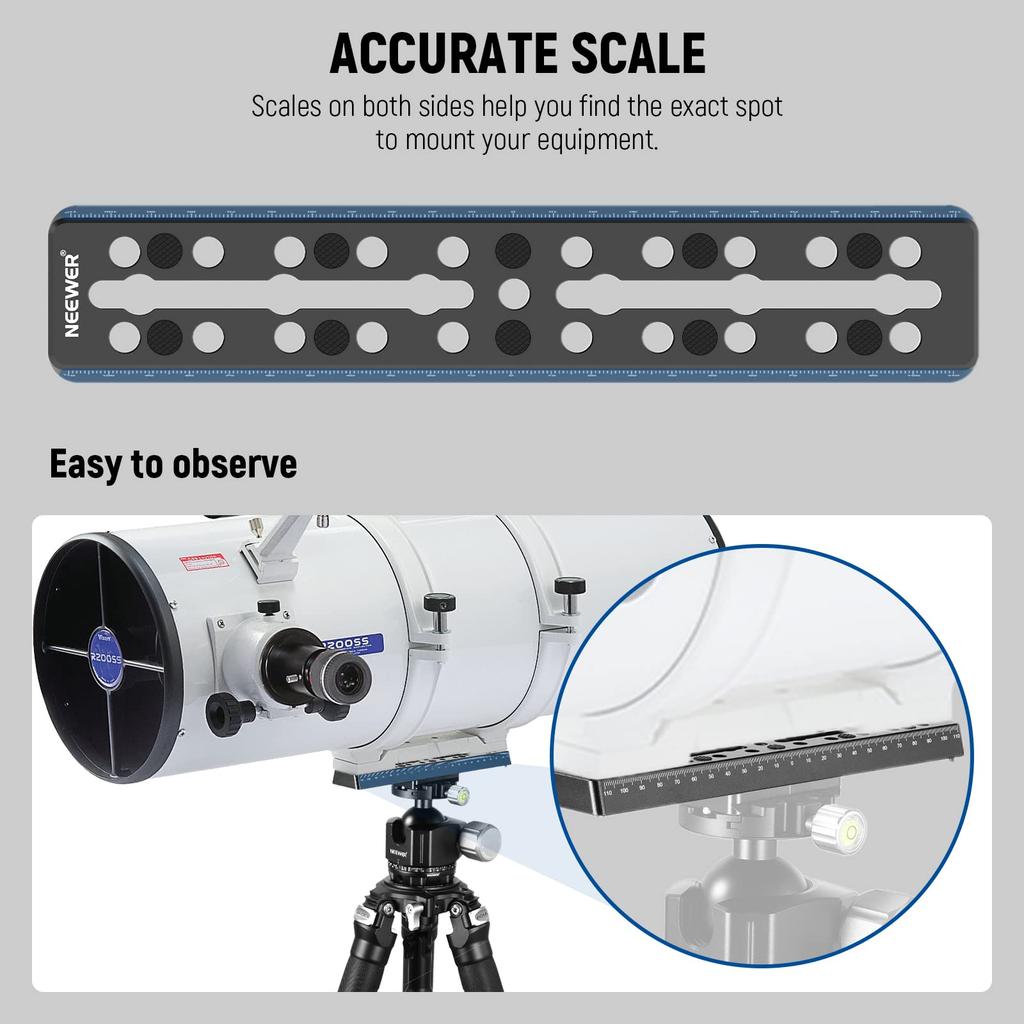

★★★★★★★★★★★ 【Wide Compatibility】This mounting plate features a Vixen style dovetail base, which is compatible with standard Vixen style saddles manufactured by various brands. 【Multiple Mounting Points】Two 3.5" (87.6 mm) countersunk slots are designed for mounting balancing devices. The 0.25" (6.4 mm) wide slots can accommodate M6 and 1/4" screws. Each slot also has 3/8" screw holes (M8 countersunk at 1.4" (35 mm) intervals. 【20 x 1/4" Screw Holes】20 x 1/4" screw holes are evenly spaced on both sides of the countersunk slot, with 0.8" (20 mm) spacing between them. These holes allow you to mount various devices with matching screws. [Accurate Scale] With scales on both sides, you can find the exact position to mount your equipment for astrophotography, astronomy, night sky observation and stargazing. 【Non-slip Rubber Pads】Soft non-slip rubber pads provide extra stability between the mounting plate and your device, protecting your device from unnecessary scratches. Four safety screws at the bottom can prevent the mounting plate from falling off. Note: To use the vixen style saddle, you need to remove the two safety screws. Product Description The metal rail bar mounting plate with Vixen style dovetails will fit all standard Vixen style saddles manufactured by any brand. Two 3.5" (87.6 mm) countersink slots are for mounting balancing devices. The 0.25" (6.4 mm) wide slots can hold M6 and 1/4" screws. Each slot also has three 3/8" threaded holes (M8 countersinks) spaced 1.4" (35 mm) apart. Twenty 1/4" threaded holes on either side of the countersunk slots are spaced 0.8" (20mm) apart. These holes allow for mounting a variety of devices with matching screws. It has a scale that allows you to find the exact position to mount your equipment for astrophotography, stargazing, night sky observation and celestial observation. Soft anti-slip rubber pads provide extra stability and protect your device from unwanted scratches, and four safety screws at the bottom prevent the mounting plate from falling off. specification Model: QR003 Material: Aluminum alloy Mounting screws: M6, 1/4", 3/8" Dimensions: 9" x 1.7" x 0.6" / 230 x 43.5 x 15mm Weight: 7.7oz/219g Package Contents 2 x 3/8" slotted screws 4 x 1/4" hex socket screws 4 x M6 hexagon socket head screws 1 x 4mm L-shaped hex key 1 x 2.5mm L-shaped hex key
