Balcony Solar Power Plant (without Battery)

The balcony solar power plant is very convenient and efficient to use. Such a solar power station can be easily placed on the balcony of an apartment, as the name suggests, and ensures the operation of some household appliances.. It also allows you to charge phones and other gadgets even in the event of a power outage.

Balcony solar power plant advantages of use Convenience of accommodation: Ideal for balconies.

Independence: Works autonomously from the power grid.

Energy efficiency: Ensures continuous operation of devices.

This balcony solar power station is a reliable and eco-friendly choice for providing electricity to your apartment.

ATTENTION! This delivery does not include connecting cables.. Cause: in each specific situation the length and cross-section of cables are individual. The customer purchases connecting cables independently, or we supply cables separately, for a specific order with a list of the required cable parameters.

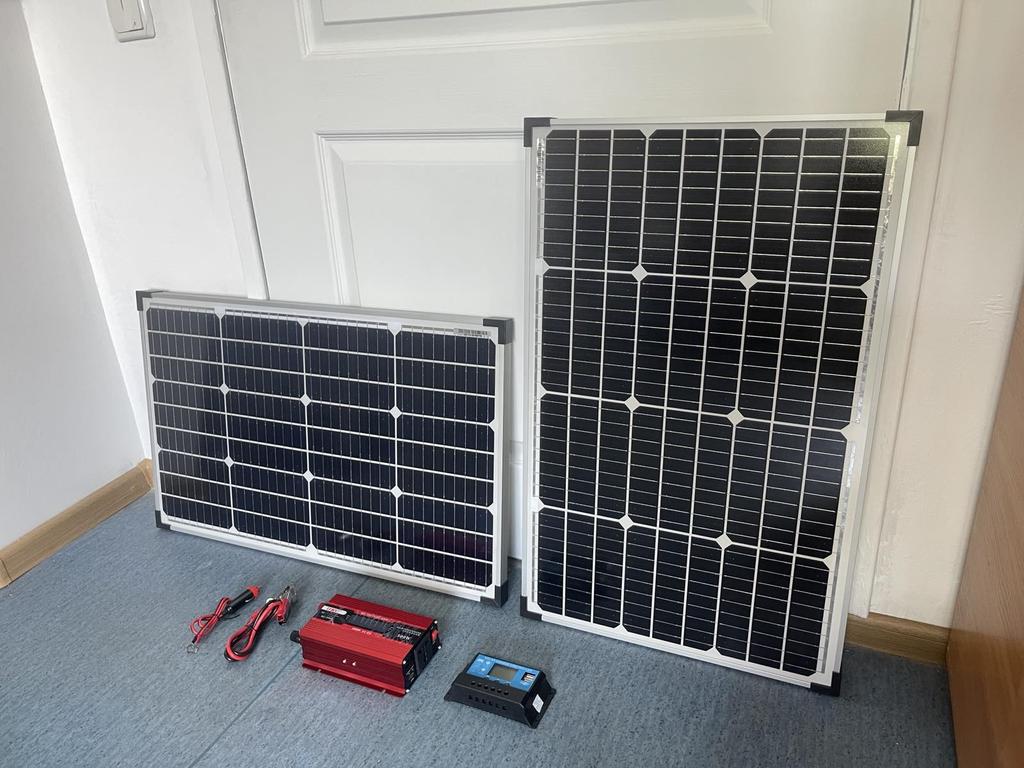

Solar power plant for placement on the balcony includes 5 components:

Solar controller SOL PWM 20A 2xUSB System voltage: 12/24 V

Maximum solar panel voltage: 50 V

Own operating current: ≤15mA

Maximum charging current: 20A

LVD: 10.7V 9V... 12Vx2 24V LVR: 12.6V/11V. 13.5Vx2 24V

Reserve voltage: 13.6V / 13V...15Vx2 24 V

Overcharge protection: 16.5Vx2 for 24 V

Reverse polarity protection: Yes

Charging mode: PWM

Temperature compensation: -24 mV/C for 12 V installation x2 for 24 V

Working temperature: from -35 to +55°С

Wiring cross-section: 28-10AWG

dimensions: 133x70x34 mm

The weight: 300 g

USB: 2 built-in USB ports 5V/2A

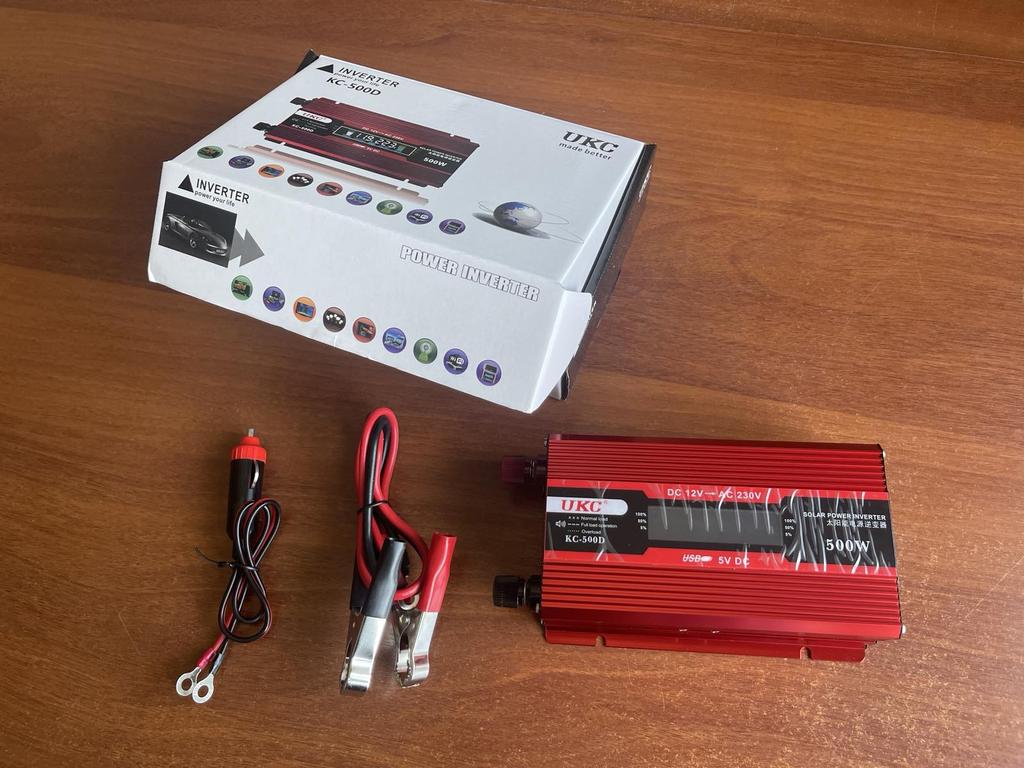

Auto inverter 12V-220V 500W LCD KC-500D + USB Red Output voltage: 220V

Output frequency: 50Hz+/-2Hz

Input voltage: 10.0-15.0VDC

Low battery signal (denomination): 10.4-11.0V

Low battery auto shut off point (denomination): 9.7-10.3V

High battery auto shut-off point (denomination): 14.5-15.5V

Output signal shape - step approximation of a sinusoid

efficiency: > 90%

Ambient temperature: 0...+40С

Battery consumption without connecting devices: <0.3A

Fan cooling

LCD display

Peak power: 500W

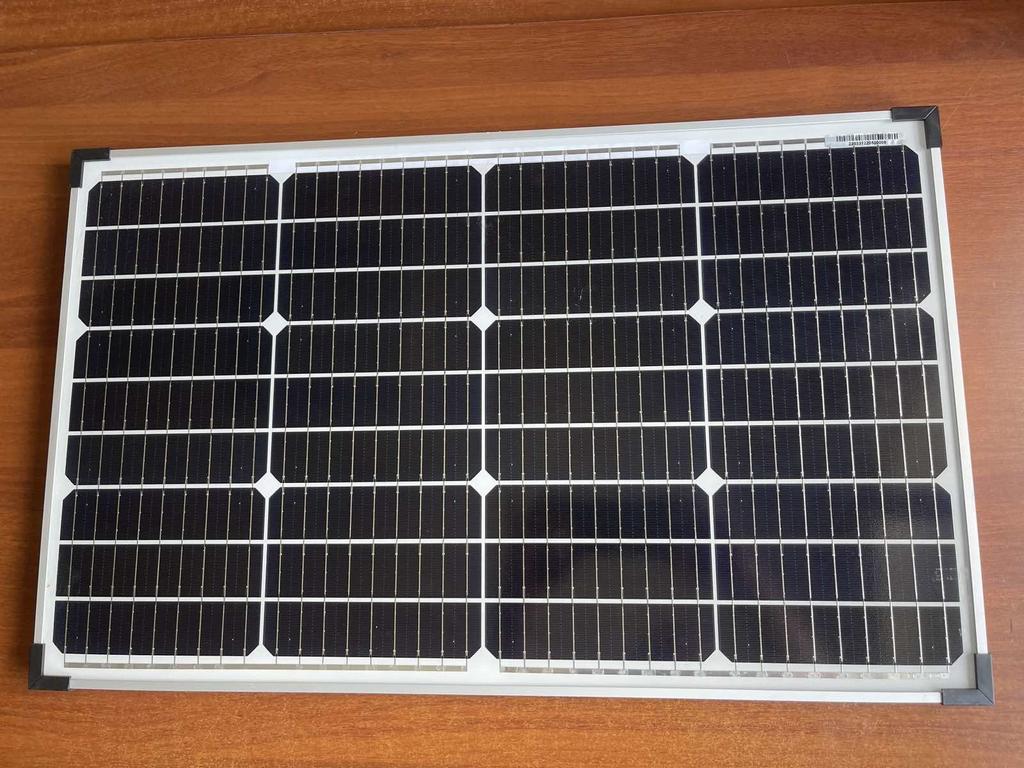

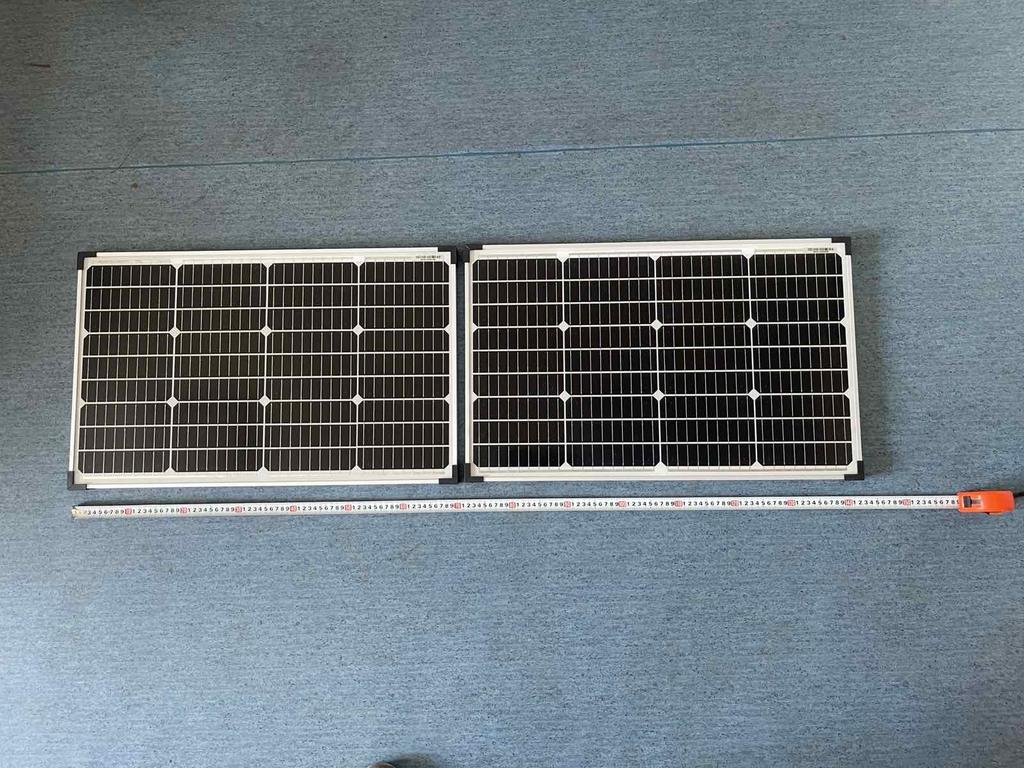

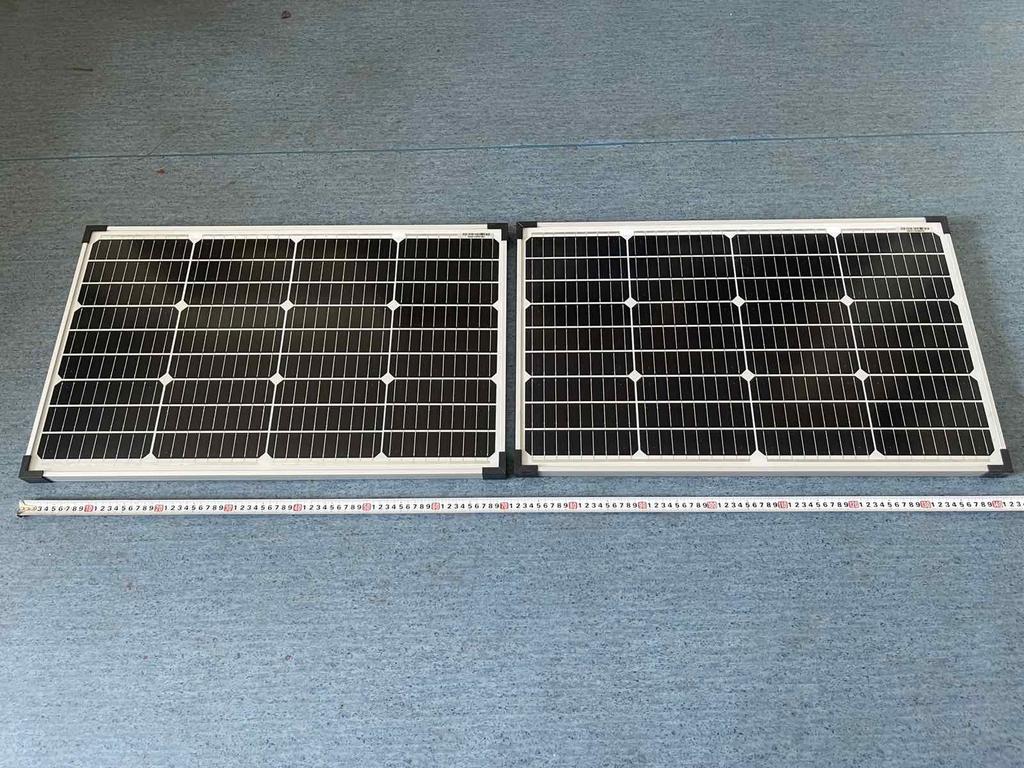

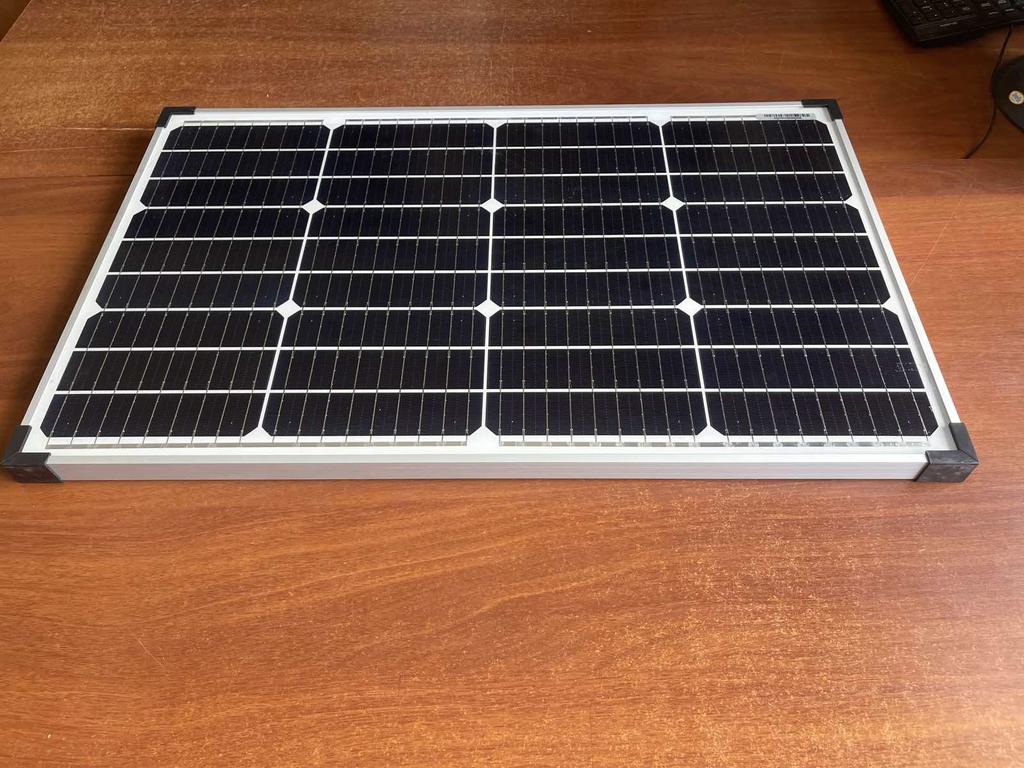

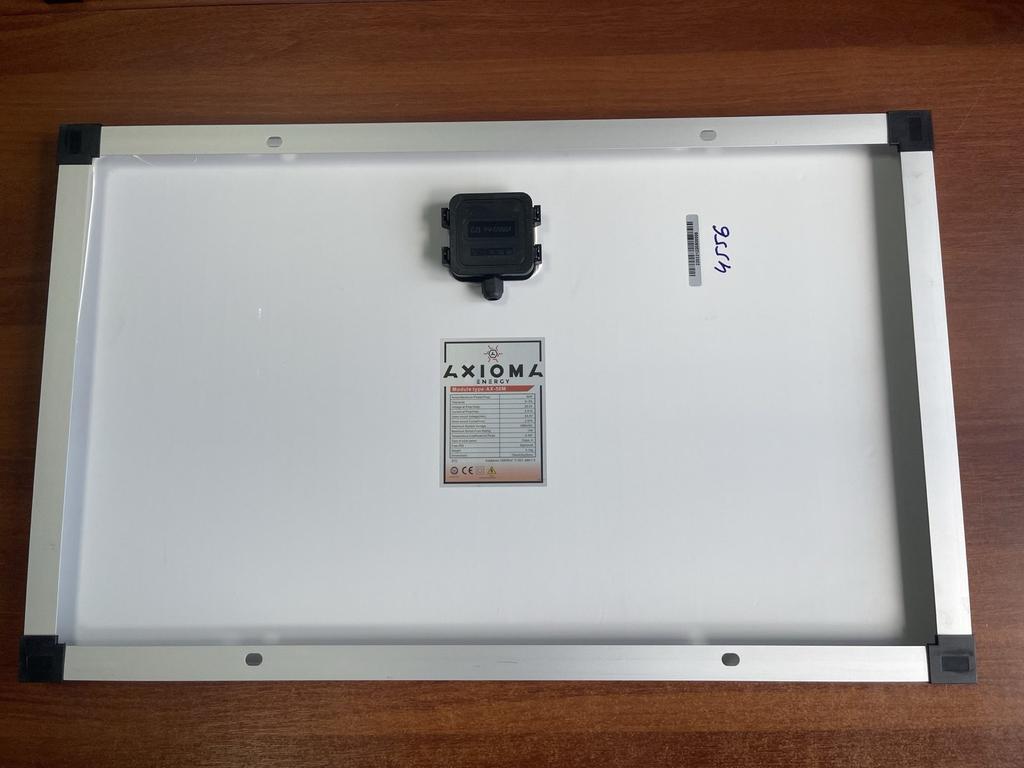

Solar panels 50W, monocrystalline AX-50M, AXIOMA energy Size, mm 610x510x30

Power, W 50.0

Uxx, V 22.10 Ikz, A 3.11 Uр, V 17.90 Ip, A 2.80

Weight, kg 4.50

A 30-80 Ah battery is not included in the delivery set.

With such a solar power plant for charging gadgets, your apartment will, at a minimum, always have light and working phones. In this case, useful square meters will not be lost; everything can be placed on the balcony railing.
