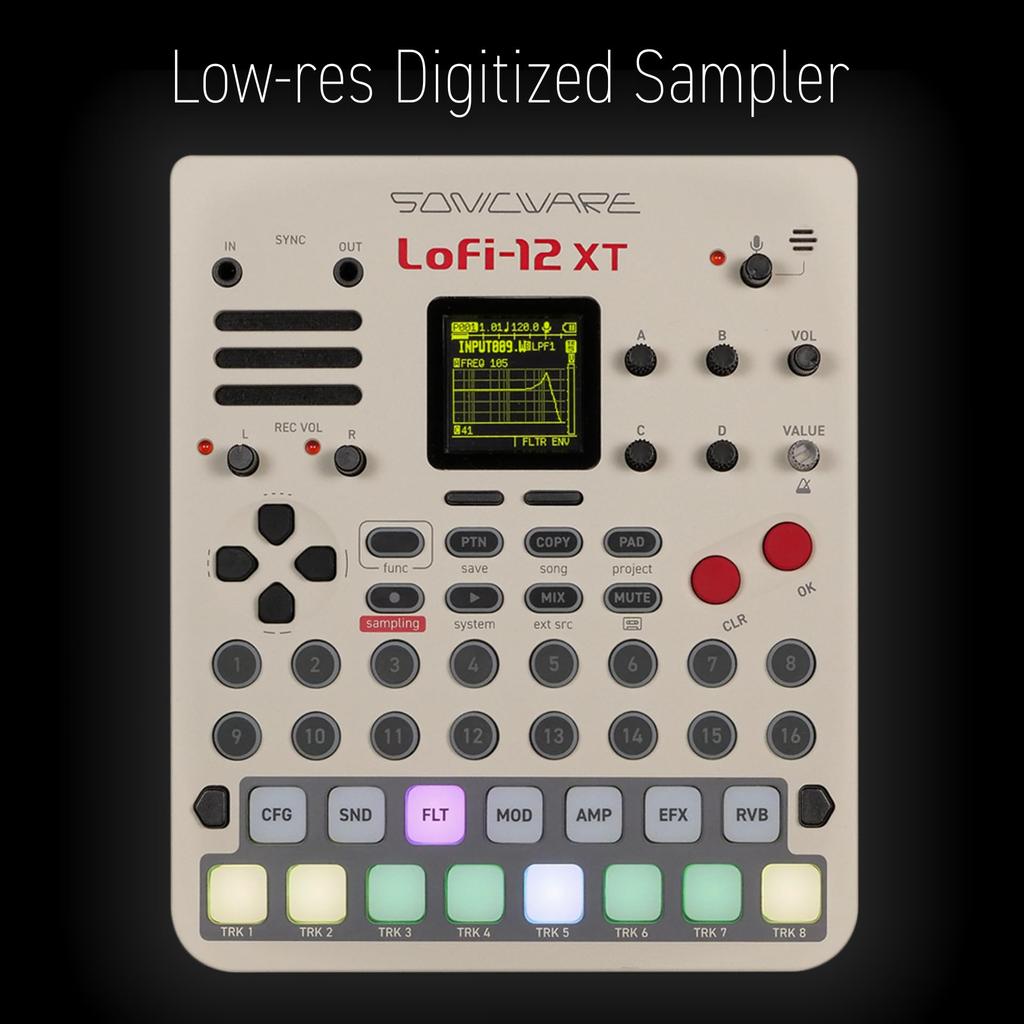

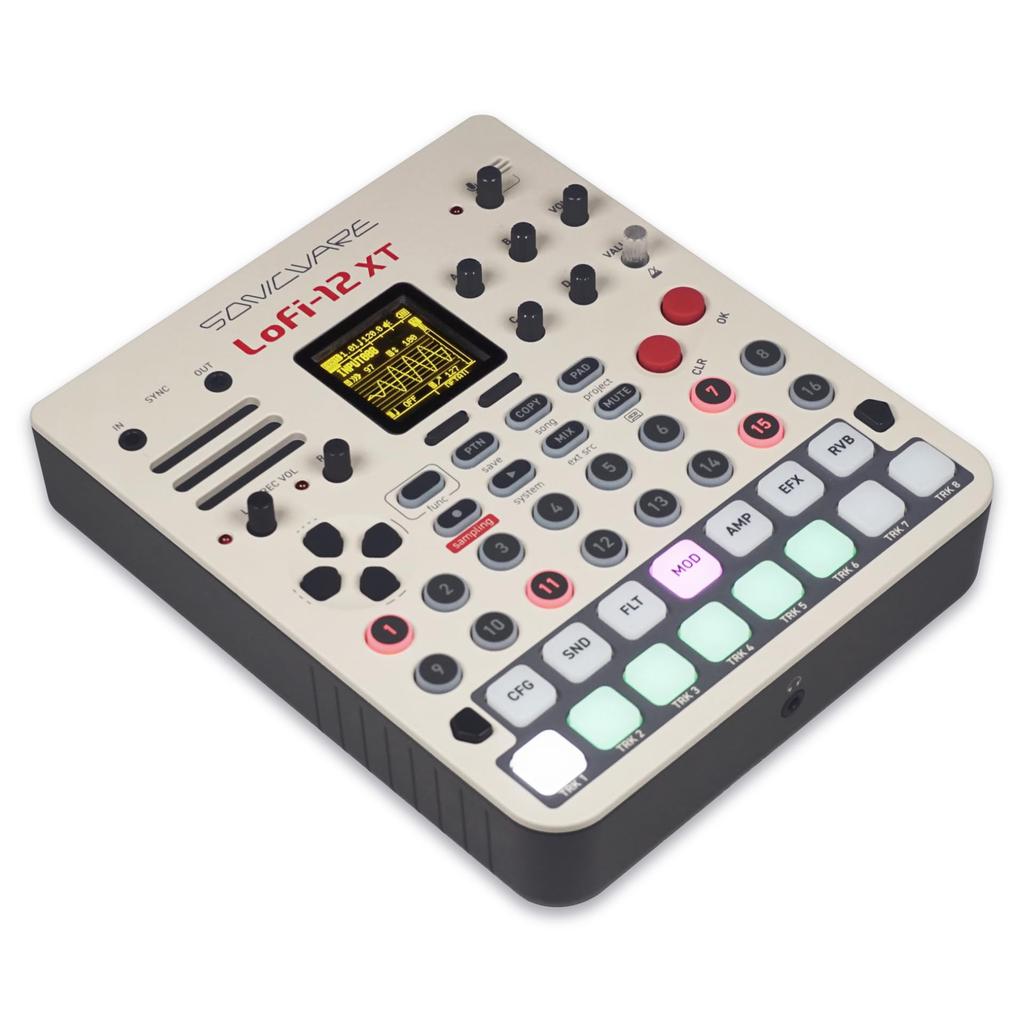

Sonicware XT Limited Retro Color Digitizing sampling sampler intuitive track Introductory Lofi-12 - - [Low-Resolution Sampler] 12kHz/24kHz + 12-bit

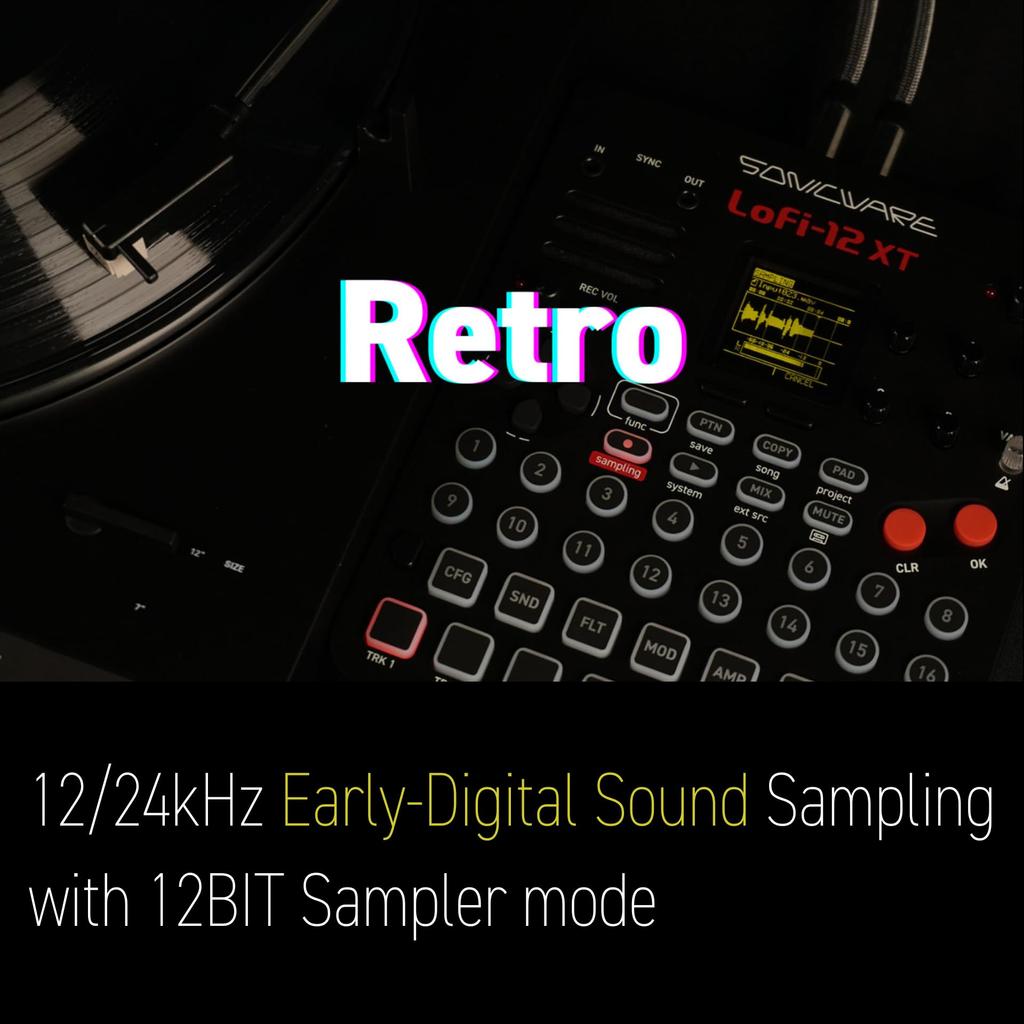

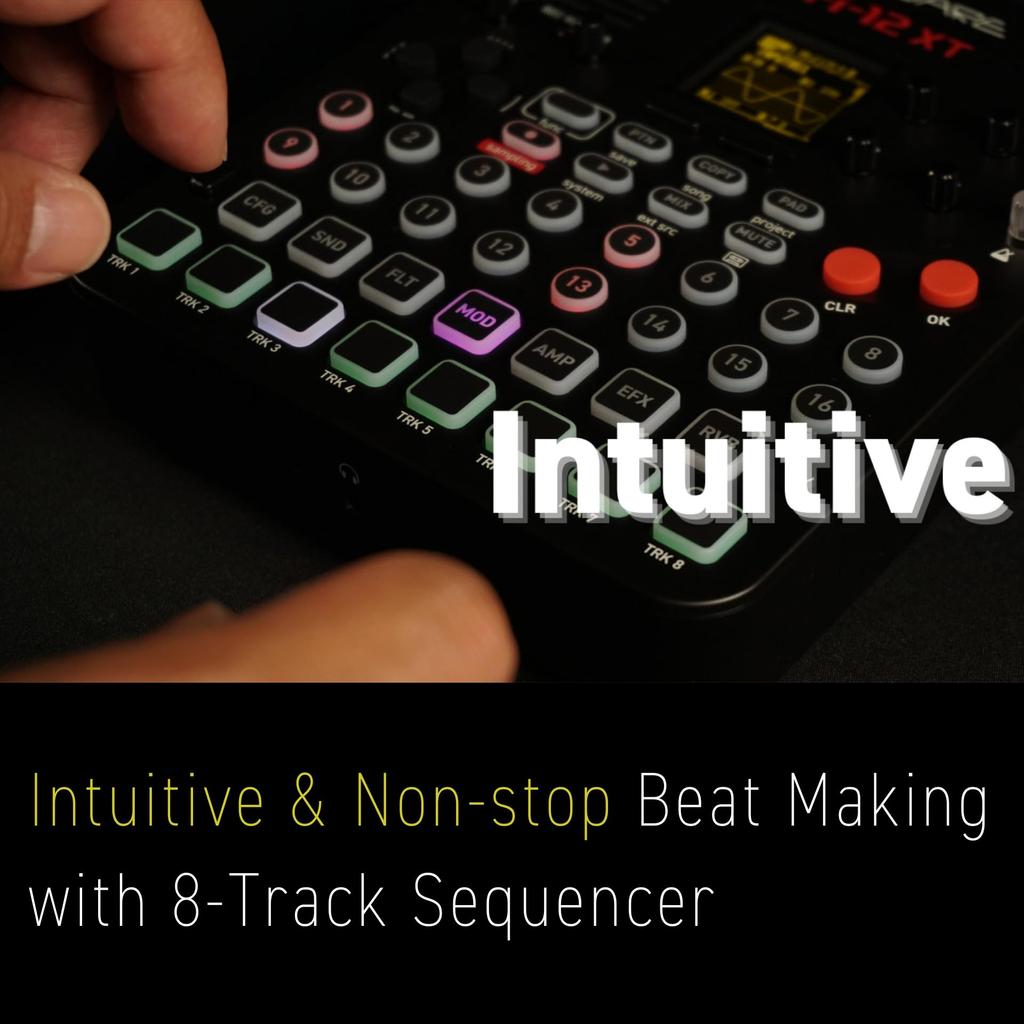

■ Authentic retro sampling + 12-bit sampler mode ■ Intuitive beatmaking and performance - Equipped with an 8-track sequencer ■ Powerful signal processing - 8 Effects, Delay, Reverb, MasterComp ■ Easy background mixtape recording ■ Versatile connectivity with other devices ■ Extensive sample library (over 2,500) • Pad/Keyboard: 15 velocity-sensitive full-color LED pads • Controller: 5 control knobs, D-pad, 2-button control • Display: 1.5-inch OLED • Built-in Microphone: 1 x Mono (Omnidirectional, 94dBPL) • Built-in Speaker: 1 x Mono (1.5W 4Ω) • Audio Input L: LINE, Electric Guitar/Bass (Independence switchable: 10kΩ or 1MΩ) [LINE Gain] PAD: -20dB [Hi-Z Gain] RAW: 0dB, NORMAL +10dB, Hi: +20dB • Audio Input R: LINE, Dynamic Microphone [LINE Gain] PAD: -20dB [MIC Gain] RAW: 20dB, NORMAL +28.8dB, Hi: +50dB • Audio Output: Stereo LINE output (Max +6.5dBV) *All jacks above are 1/4" TRS Phone connectors • Headphone Jack: 3.5mm stereo mini type • USB terminals: MIDI IN (5-pin DIN type), MIDI OUT (5-pin DIN type) • Other connections ・Ports: SYNC IN jack (3.5mm mono mini type), SYNC OUT jack (3.5mm mono mini type), SD card slot (standard size *Supports SDHC cards up to 32GB), DC IN power connector, Rear screw hole: 1/4-20UNC for tripod mounting, etc. ・Size and weight: Width 147mm, Depth 175mm, Height 46mm, Weight 550g (main unit only) ・Power supply: DC12V output power adapter (500mA, Inner diameter 2.5mm, Outer diameter 5.5mm, Polarity center +), 6 x NI-MH AA rechargeable batteries or alkaline AA batteries (Alkaline batteries last approximately 4 hours) *Batteries sold separately ・Accessories: 32GB SDHC card (over 2,500 samples included), power adapter, warranty card *USB cable and other connection cables are sold separately.

AC Adapter (Included)Output Specs: DC 12V, 500mAPolarity: Center positive (+)Plug Size: 2.5mm ID (Inner Diameter) / 5.5mm OD (Outer Diameter)Batteries (Sold Separately)AA alkaline batteries or AA Ni-MH rechargeable batteries × 6Continuous Battery Life: Approx. 4 hours when using alkaline batteries

AC Adapter Information Voltage & Plug: Designed for AC 100V with a Type A plug. Voltage Converter: A voltage transformer is required when using this AC adapter.
