High-conrned chemical : None
Installation Method : Assembly
Is Batteries Included : Yes
Power Sour : SOLAR
: Mainland China
Style : Contemporary
Is Bulbs Included : Yes
Voltage : 24v
ISUFU
rtification : FCC,GS,UL,CQC,pse,CCC,,,,,SAA,
Is Dimmable : Yes
Solar ll Type : Lithium battery
Protection Level : IP68
Body Material : ABS
Use : EMERGENCY
Name 1 : IP68 Waterproof Solar COB
Name 2 : DC24V Solar COB Neon Strip
Name 3 : Dimmable Linear Lighting
For ly arrived solar light strips, please use them when there is no direct sunlight and are not in charge, otherwise the light strips will not light up. You can consult customer servi for any after-sales issues and serve you at any time.
Specification:

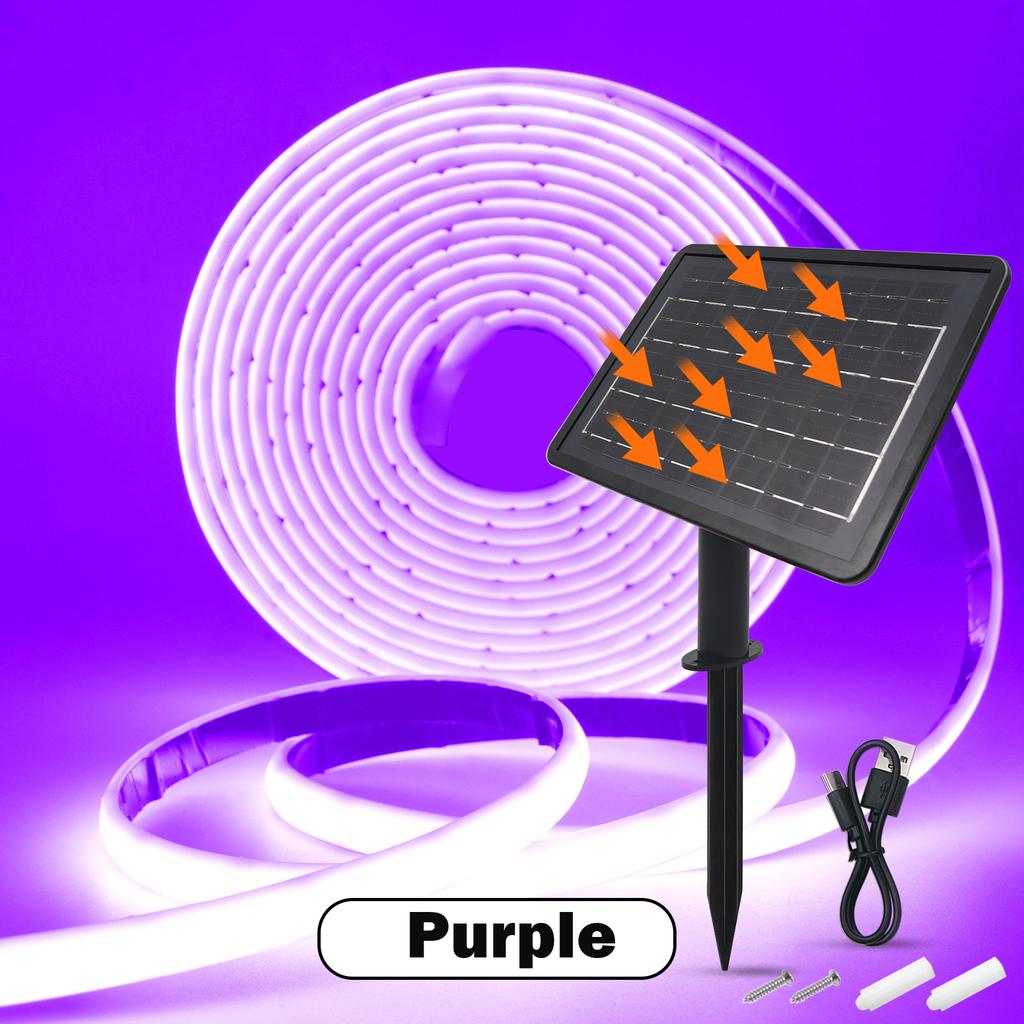

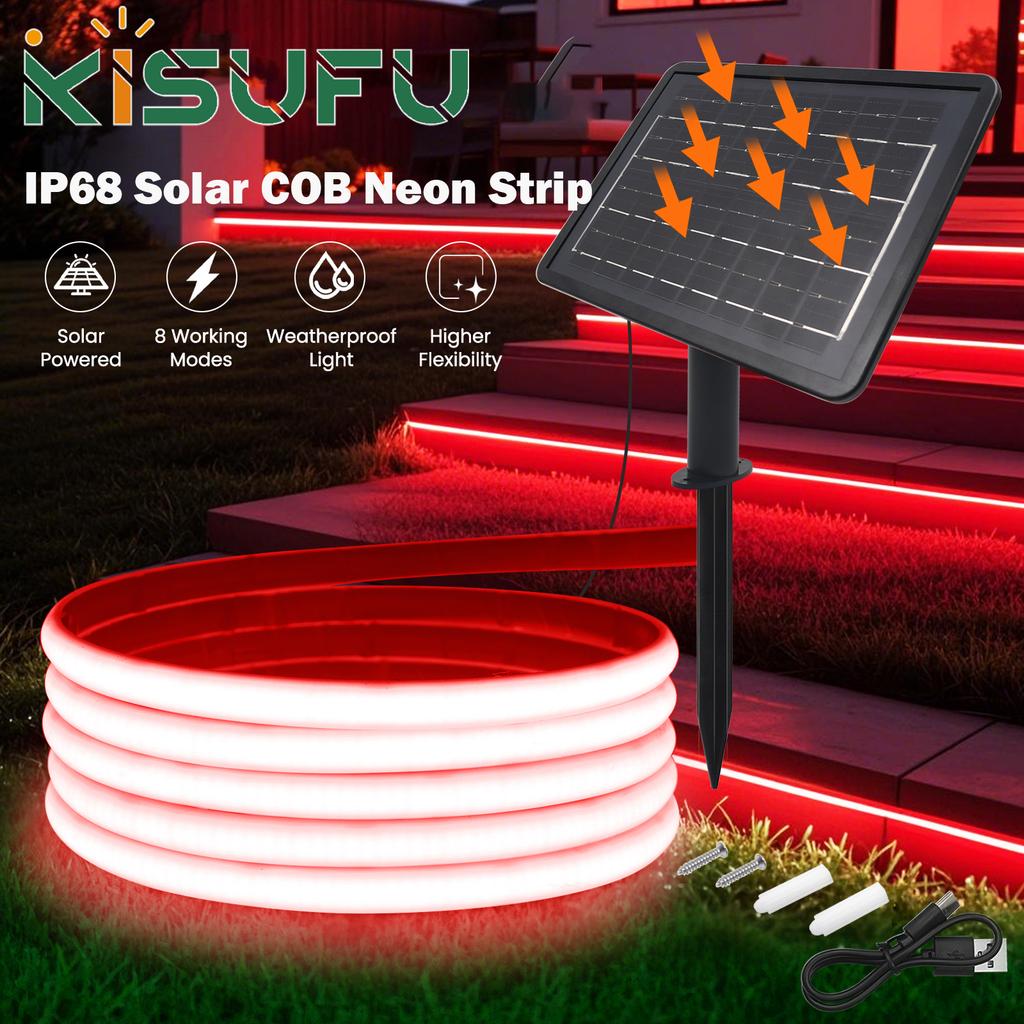

Item: IP68 Waterproof Solar COB Neon Strip
Lamp beads: COB
LED quantity: 320LEDs/m
Voltage: DC24V
Waterproof grade: IP68 waterproof
Neon light width: 9-10MM
FPCB width: 8MM

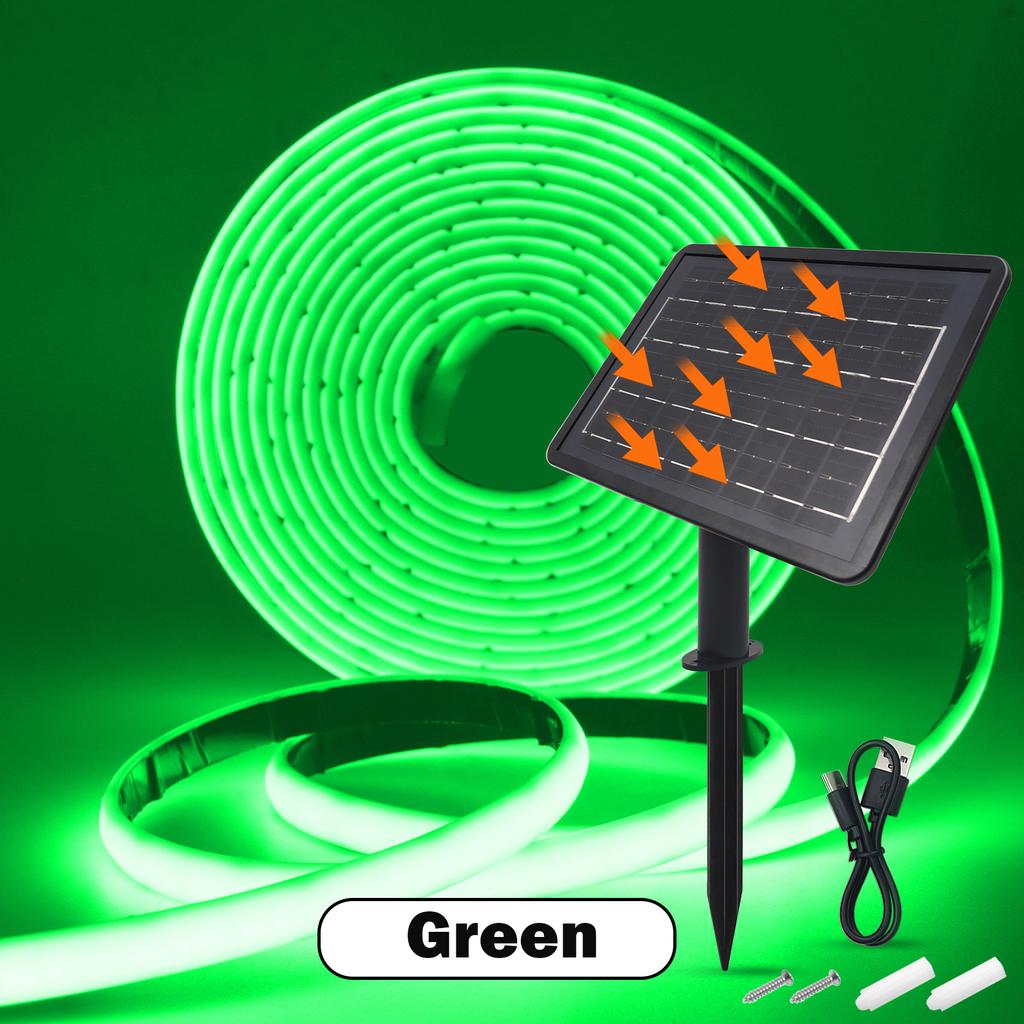

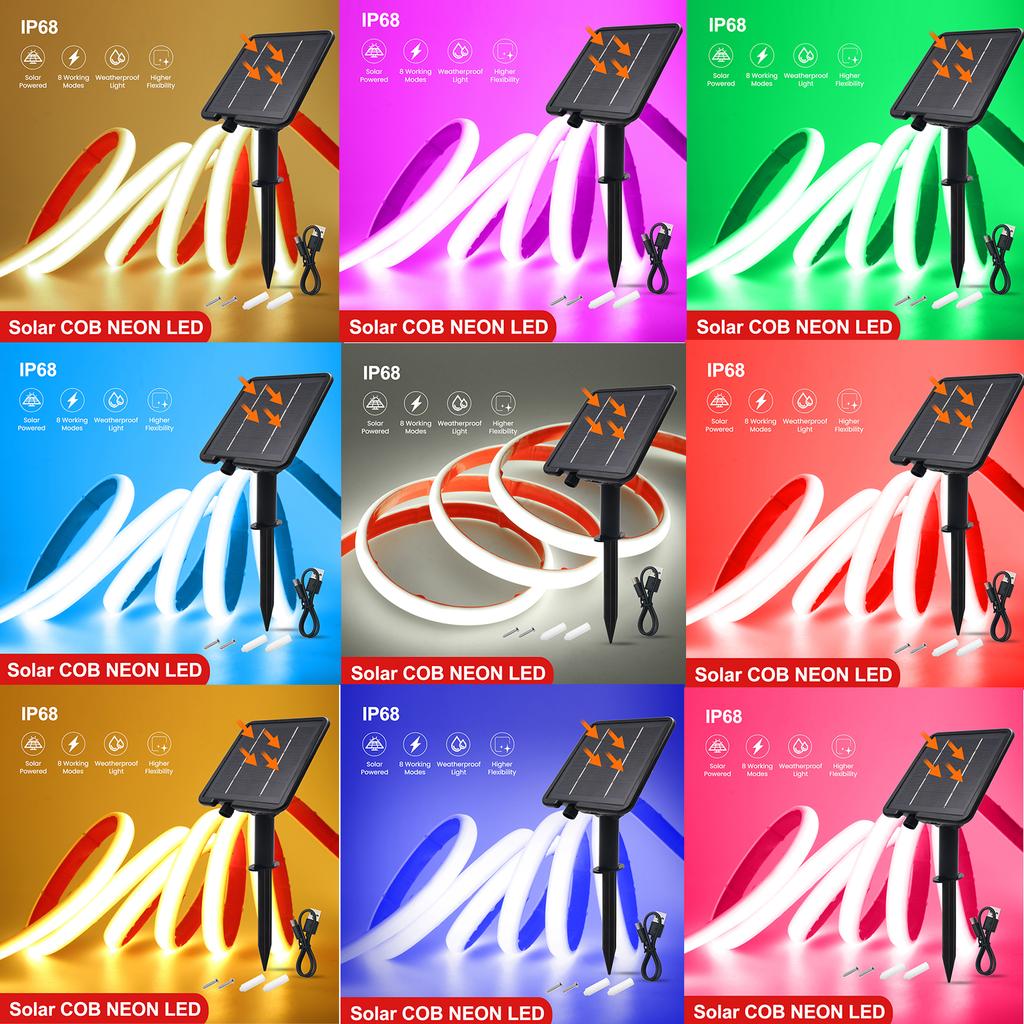

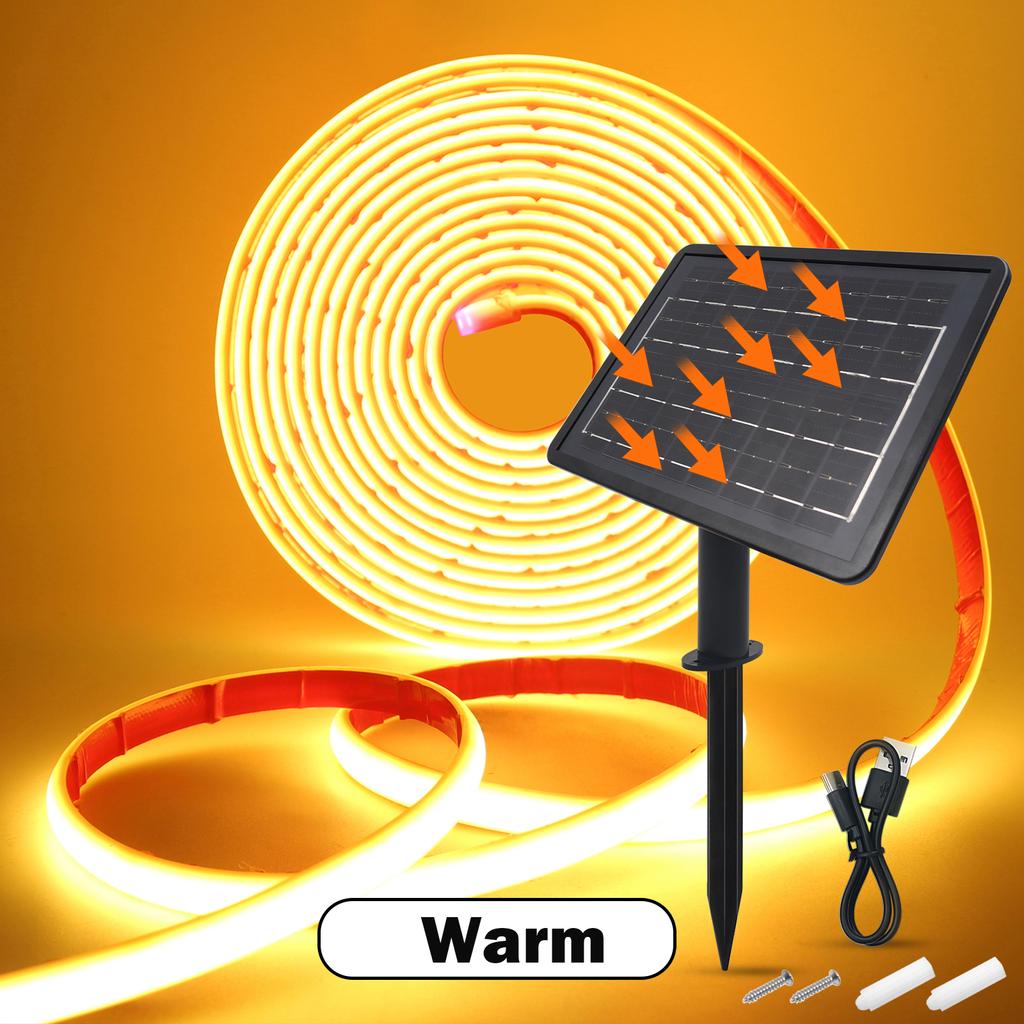

Color temperature: natural white (4000-4500K), white light (6000-6500K), warm white (3000-3500K),Blue,I Blue,Green,Purple,Yellow,Pink,Red
Power: 7-9W/meter
CRI(RA): >90
Adhesive: yes
Cutting unit: led strip Can be cut at marked intervals
Length: 0.5m/1m/2m/3m/4m/5m/6M/7M/8M/9M/10M

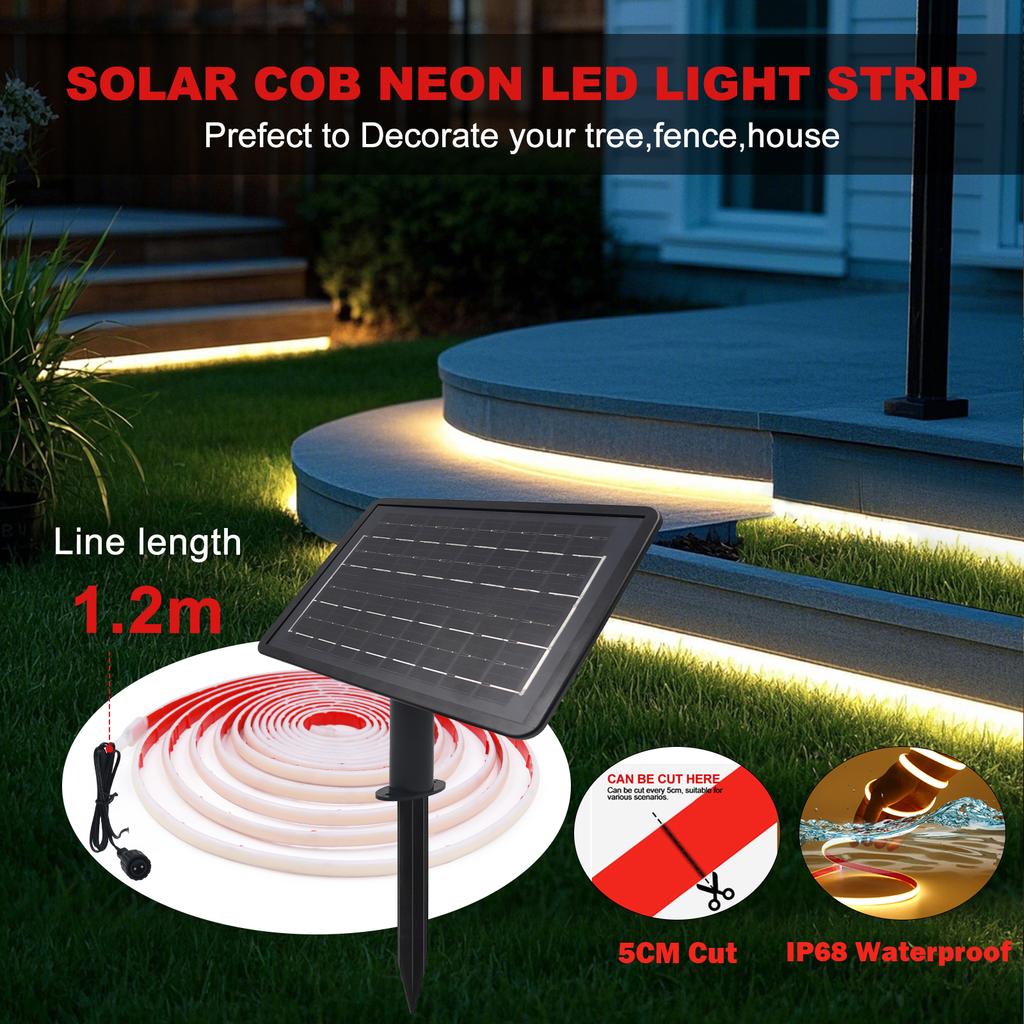

Power connection interfa cord length: 1.2 meter
Lighting Angle: 120 ° ~ 140 °
Power connection interfa cord length: About 1.2 meter
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180
IP68 waterproof light strips can be plad underwater , such as in fish tanks, swimming pools, etc.
Package includes:
Solar Powered LED Strip Light Kit
1X IP68 Waterproof COB LED Strip
1X Solar Panel
Note:
Remember:
When the light strip is delivered, please charge it fully before using it. When using the light strip, please turn on the solar panels in a dark pla before turning on them
Note
Installation preparation
Site selection requirements
1. Choose a position where the sunlight is directly exposed during the day is ≥6 hours to ensure that the solar panels are not blocked by the sun.
2. The light strip can be hung from the wall, bracket or paved flat on the ground (some models support ground insertion)
Component Connection
3. Connect the light strip to the solar panel through a waterproof interfa to confirm that the buckle is completely locked
Models equipped with remote control must first be aligned with the front of the light strip and press any function keys to complete the pairing
Charging and startup
1. Charging method
Solar Charging: Pla the solar panels in the sun during the day to automatically charge (recommended daily charging)
Emergency cable charging: Connect the charging cable through the USB interfa to recharge the charge (applicable on rainy days)
2. Turn on the light to trigger
Press "ON" to Turn it on, press "OFF" to turn it off immediately
3.Power display light
There is a power display, which makes it easier for you to charge solar panels in time
4.8 modes for switching the light strips in solar panels
Conmbination
In Waves
Sepuential
Slow Glow
Chasing/Flash
Slow fade
Twinkle/Flash
Steady On
Maintenan and precautions
1. Daily maintenan
Regularly wipe the dust on the surfa of solar panels with a soft cloth to maintain photoelectric conversion efficiency
It is recommended to reclaim indoor storage when it is below -10℃ in winter (expt for lithium battery anti-freeze models)
2. Troubleshooting
Check whether the battery polarity is installed correctly when the light strip is not on (the positive electrode is facing the lamp head/the negative electrode is facing the tail)
