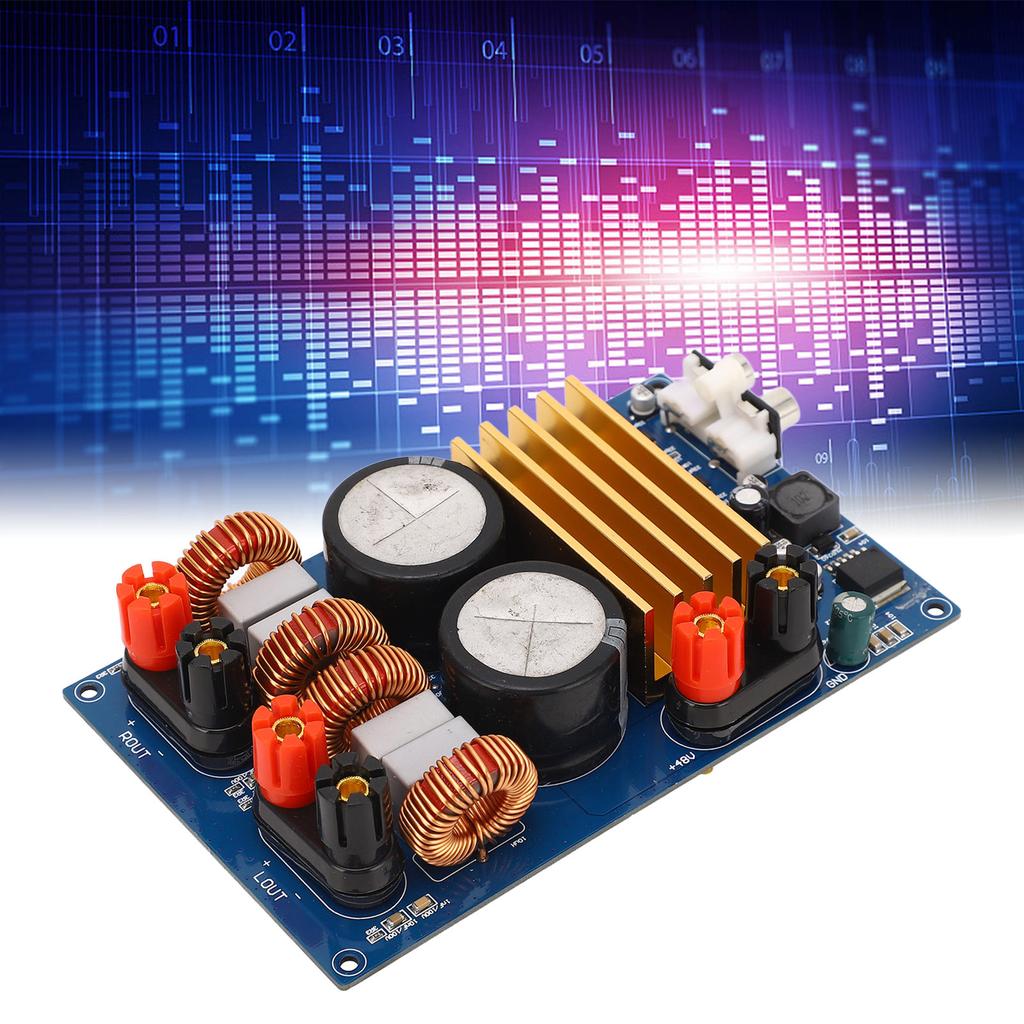

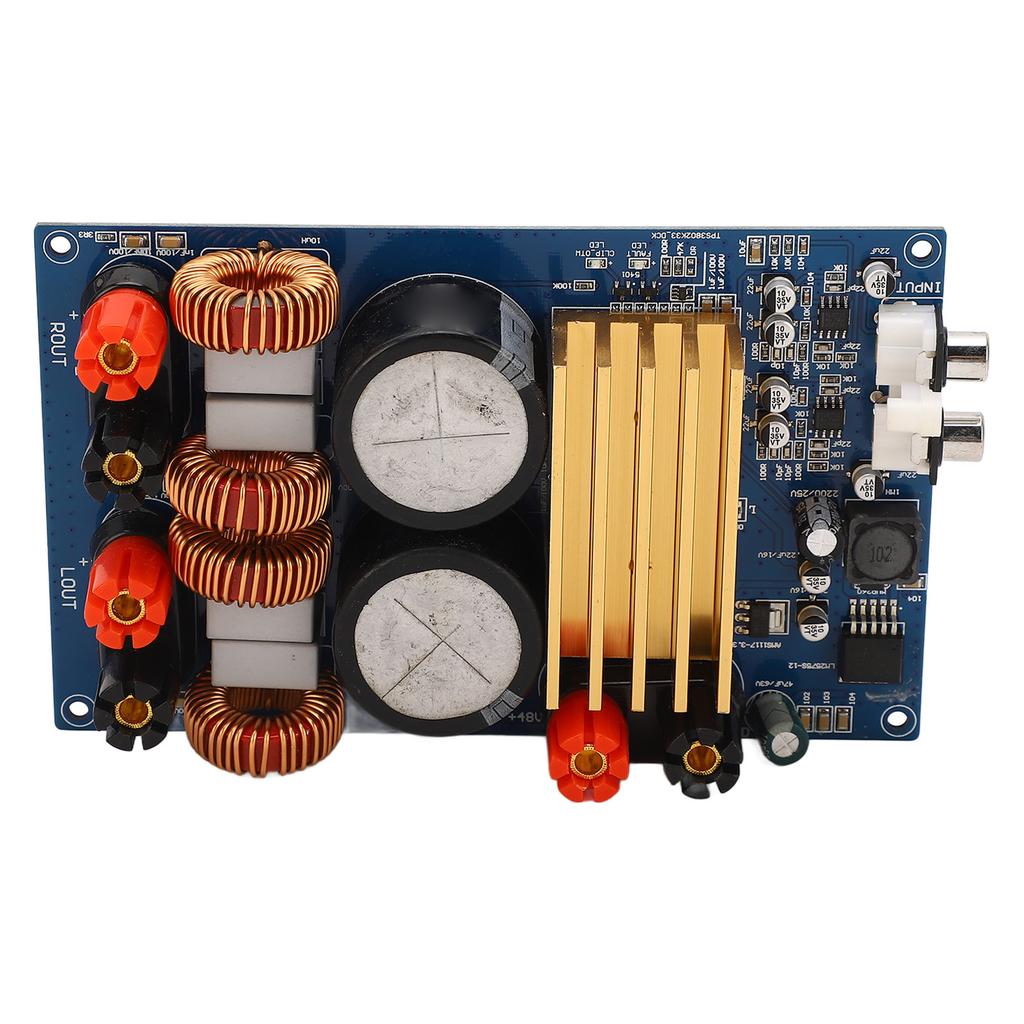

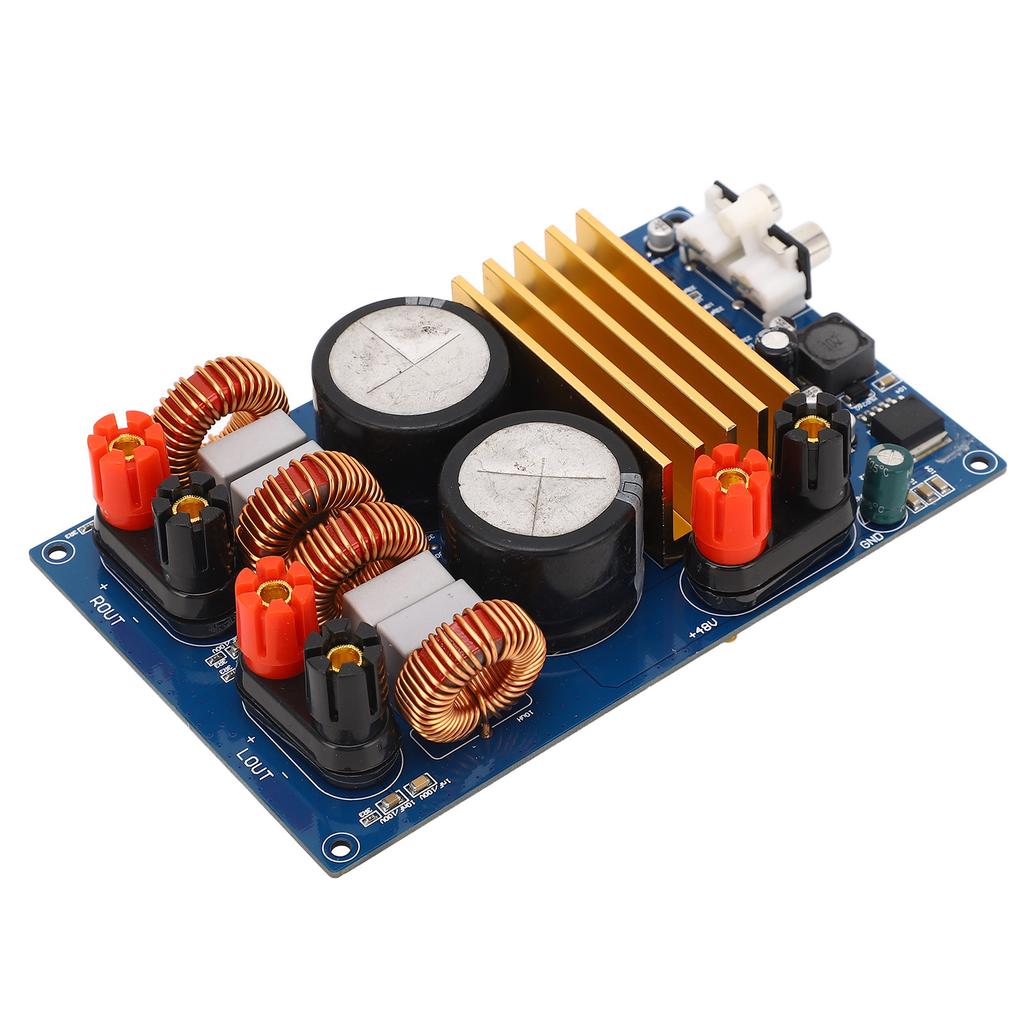

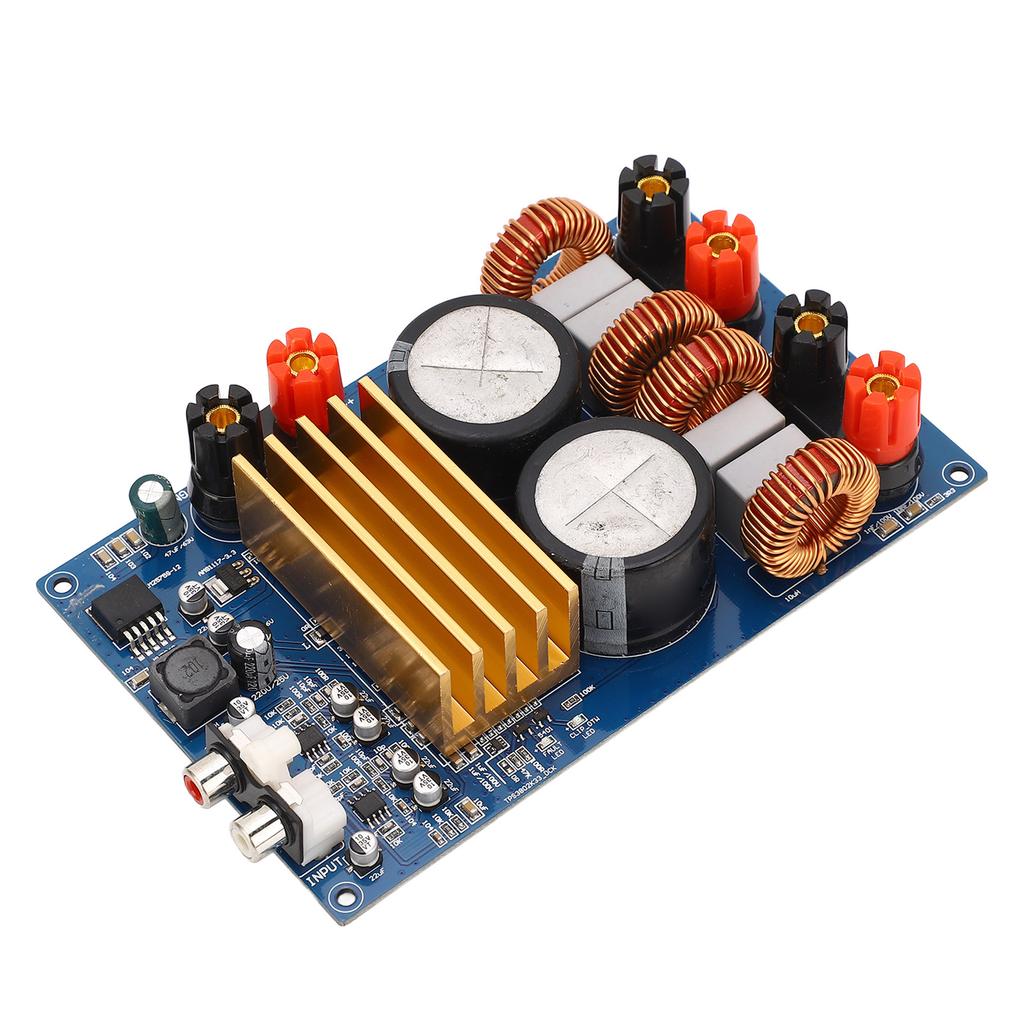

Amplifier Board TPA3255 300W Plus 300W Class D Digital Amplifier Audio Board for Home Theater DC48V

Feature: 1. CLASS D AMPLIFIER BOARD: TPA3255 is a high performance Class D power amplifier that can bring true high end audio quality. 2. PERFECT SOUND QUALITY: Adopt highly advanced integrated feedback design and high speed gate driver error correction, can maintain ultra low distortion throughout the entire audio frequency band while providing perfect sound quality. 3. MULTI FUNCTION: This amplifier board can drive up to 2 x 315W 4R loads and 2 x 150W (unshipped power) 8R loads in AD mode with a THD of 10%, and has a 2 VRMS analog input interface that supports seamless connection with high performance DACs. 4. STRONG POWER SUPPORT: The digital amplifier audio board adopts 2 x 4700UF 63V main filter electrolytic capacitor, ensuring strong and continuous power support. 5. HIGH PRECISE RESISTOR: The digital power amplifier board adopts high precise chip resistor to ensure good signal to noise ratio. Specification: Item Type: Amplifier Board Material: PCB Basic Performance Parameters: Working Mode: Class D Quiescent Current: 60mA Work Efficiency: >90% Output Power: 315W 4Ω, distortion 10% 185W 8Ω, distortion 10% 260W 4Ω, distortion 1% 150W 8Ω, distortion 1% Frequency Response: 20Hz to 20KHz Dynamic Range: >100dB Signal to Noise Ratio (SNR): >111dB Features: 1. Using the original TPA3255 LM2575S 12 2. The main filter electrolytic capacitor adopts an imported brand capacity of 4700UF 63V x 2 to ensure strong and continuous power support 3. The selection of high precise chip resistors ensures a good signal to noise ratio of the entire machine 4. Adopt a dedicated audio inductor to ensure crisp and powerful sound 5. The PCB is made of 1.6mm thick double sided sheet metal, with a thickness of 2.0 amperes of copper and a full process of tin spraying, ensuring good performance in passing large and small currents Introduction: TPA3255 is a high performance Class D power amplifier with Class D efficiency and the ability to deliver truly high end audio quality. This device features advanced integrated feedback design and proprietary high speed gate driver error correction function (High Definition). This technology allows the device to maintain ultra low distortion throughout the entire audio frequency band while exhibiting perfect sound quality. This device operates in AD mode and can drive up to 2 x 315W 4R loads and 2 x 150W (unshipped power) 8R loads at a THD of 10%. It also features a 2 VRMS analog input interface that supports seamless connection with high performance DACs (such as TI PCM5242). In addition to excellent audio performance, the TPA3255 also combines two major advantages: high power efficiency and ultra low power grade idle loss (below 2.5W). This can be achieved through 85mR MOSFETs and optimized gate driver schemes. This scheme can significantly reduce idle loss compared to traditional discrete implementation schemes. Package List: 1 x Amplifier Board Note: The color of components may sometimes change, for example, when there is no black capacitor, we will replace it with green or yellow capacitors.
