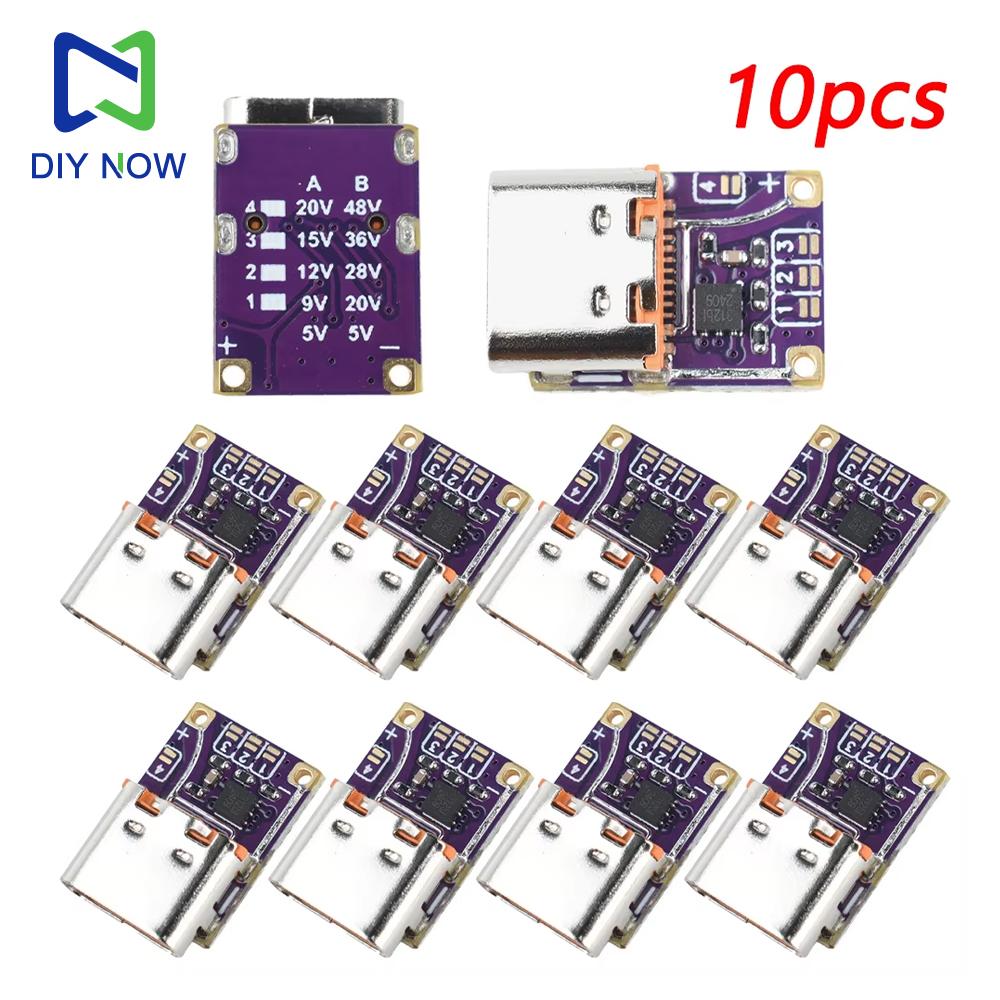

10pcs Type-C Fast Charging Trigger PD3.0/QC3.0 Decoy Module 5V-20V Output for DIY Power Bank/Laptop Charger High/Low Voltage

Quantity : 10 High-concerned chemical : none Package : TQFP is_d : Yes Supply Voltage : DC 5V/9V/12V/15V/20V Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

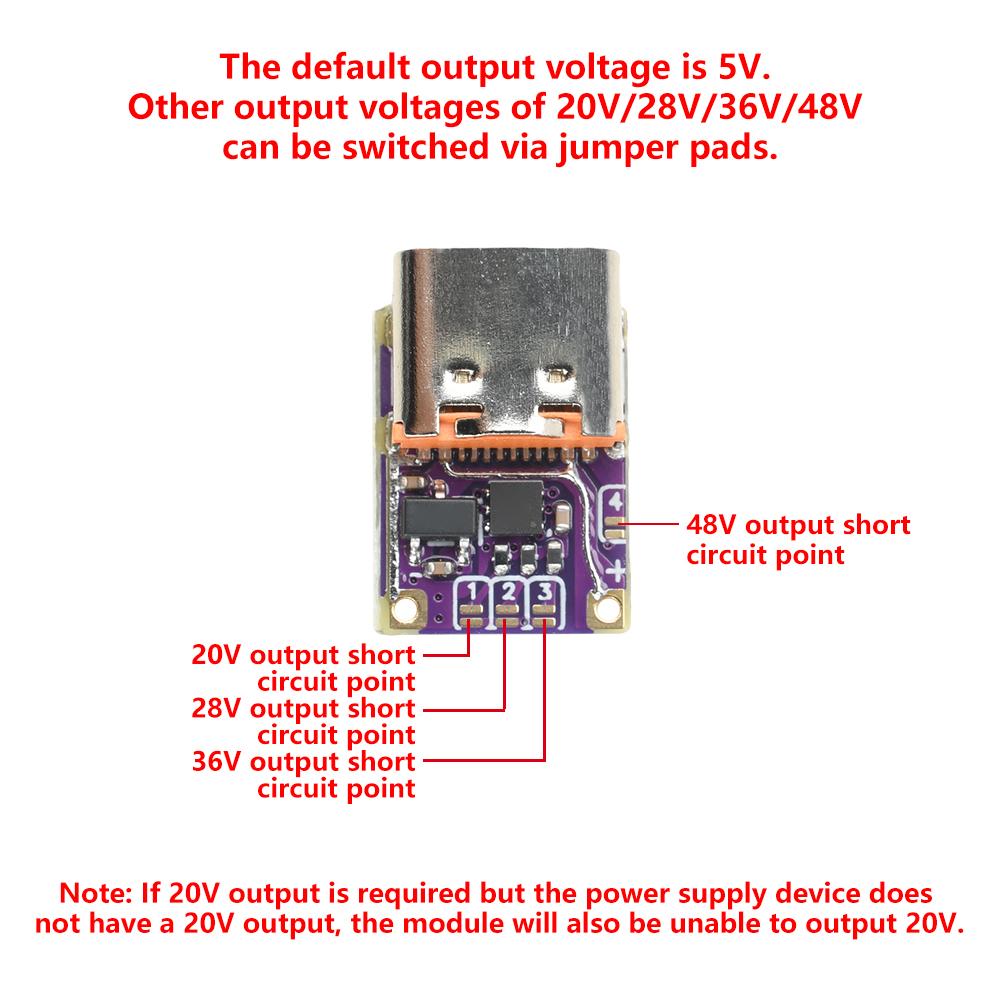

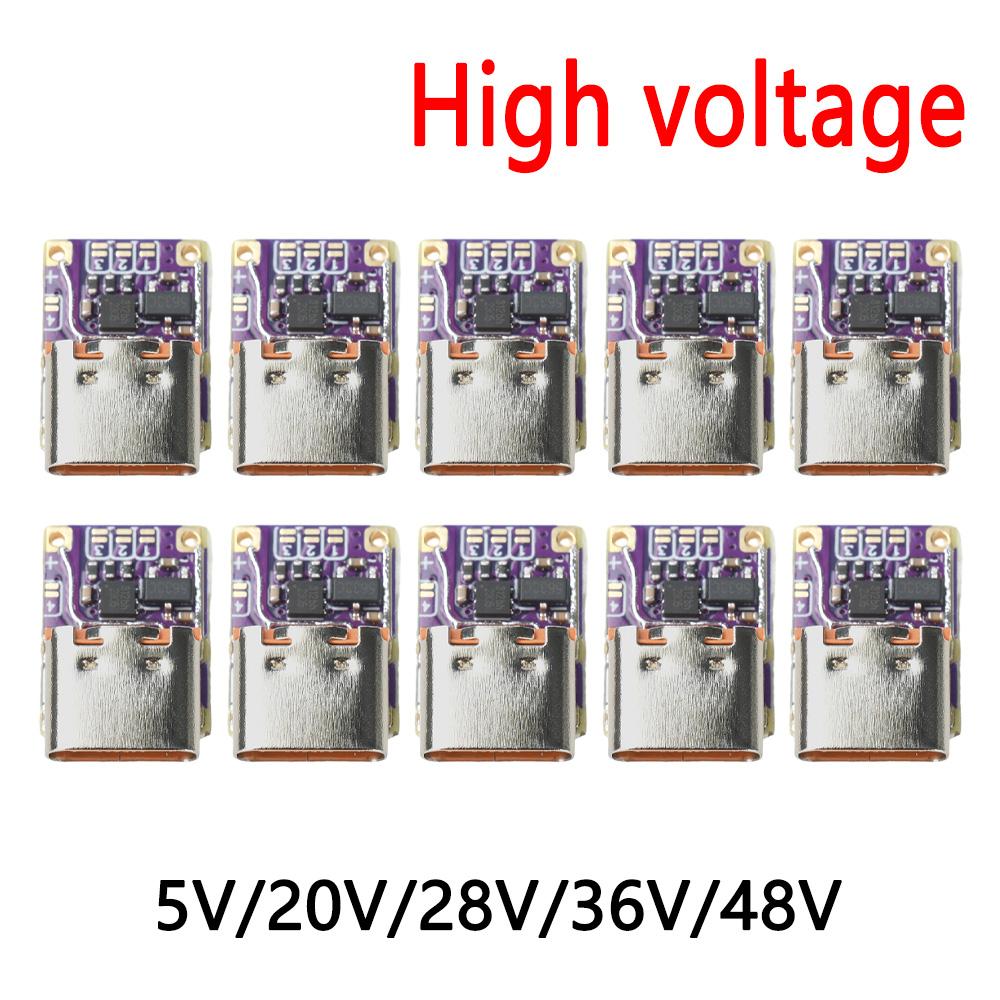

Product Features:1. Multi-protocol Compatibility: Supports mainstream fast charging protocols such as PD and QC series, with intelligent automatic identification and matching.2. Flexible Switching Design: Type-C port + shorting pad for easy output voltage adjustment.3. Multi-Scenario Applications: Suitable for automotive, energy storage, industrial testing, and other professional applications.4. Automatic Handshake Stability: Adapts to protocol priority to ensure efficient fast charging output.5. High Current Support: Maximum current of 5A. Requires a pre-powered charger that matches the protocol for efficient power supply. Product Parameters:Product Name: Decoy Fast Charging ModuleConnector: Type-COutput Voltage:Low Voltage: DC 5V/9V/12V/15V/20V (Default 5V output, other voltages can be switched via shorting pad)High Voltage: DC 5V/20V/28V/36V/48V (Default 5V output, other voltages can be switched via shorting pad)Current: 5A (maximum). Requires a pre-powered charger or a power bank that supports the corresponding protocol.Supported Protocols: PD2. 0, PD3.0, PD3.1, QC2.0, QC3.0, QC4, QC5Applications: Easy to use, suitable for a wide range of applications including wireless charging, Bluetooth speakers, in-vehicle equipment, energy storage, and industrial testing. Description:The module features a high-current design, capable of outputting up to 5A. It also offers strong compatibility with fast charging protocols such as PD3.1 and QC2.0, easily tricking the charger into outputting the corresponding voltage. Output voltages of 5V, 9V, 12V, 15V, 20V, 28V, 36V, and 48V are supported. The module defaults to a standard 5V output and uses a short-circuit switch, allowing you to switch to a specific voltage. The module is backward compatible, so if the power supply device doesn't support the set voltage, it will output the closest voltage.The module automatically completes handshakes with the charger according to protocol priority, ensuring the preset output voltage. The decoder output cannot directly charge mobile phones. Before charging, please confirm that the output voltage matches the required charging voltage. Note:For example, if the customer selects a 9V output voltage, the front power connector must comply with the PD9V or QC9V protocol; if the customer selects a 20V output voltage, the front power connector must comply with the PD20V or QC20V protocol. Note:1. The module does not have a step-up or step-down function; the power supply must support this voltage in order to induce the corresponding voltage.2. The module can only induce a maximum voltage of 12V under the QC protocol. label:yes
