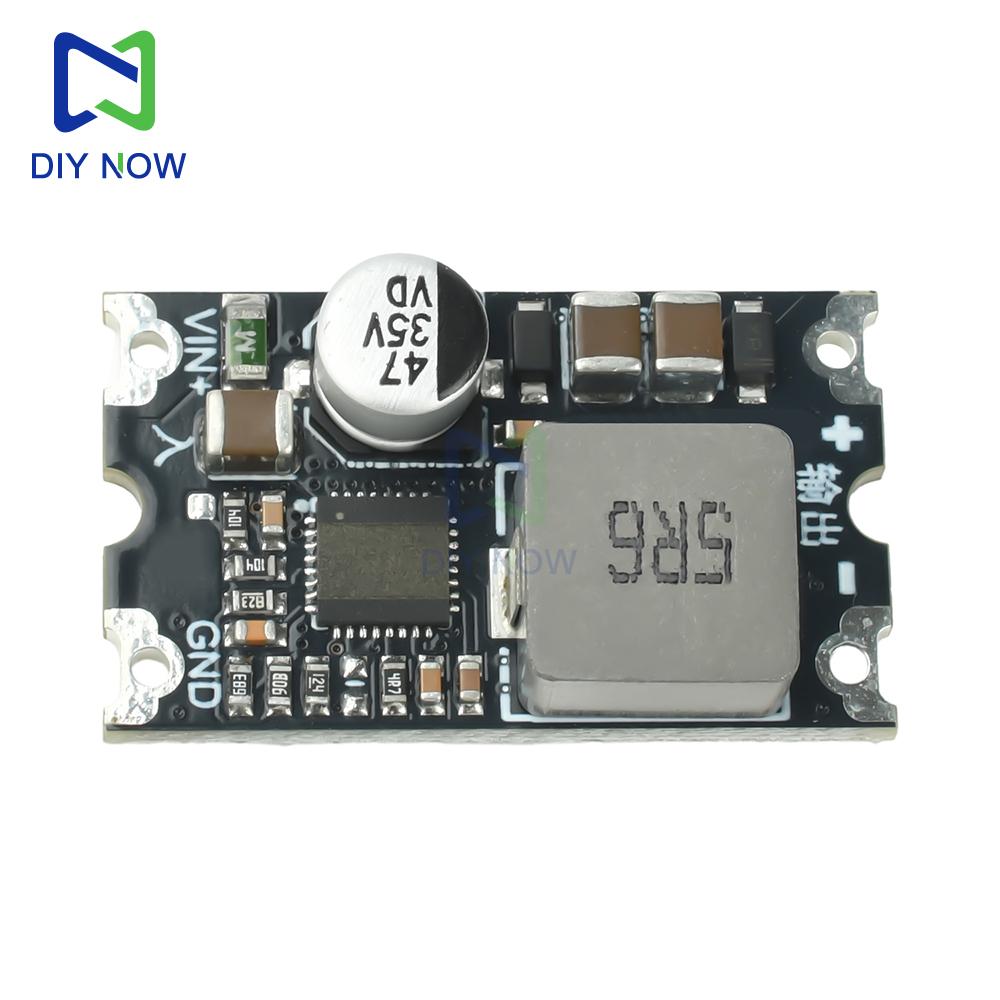

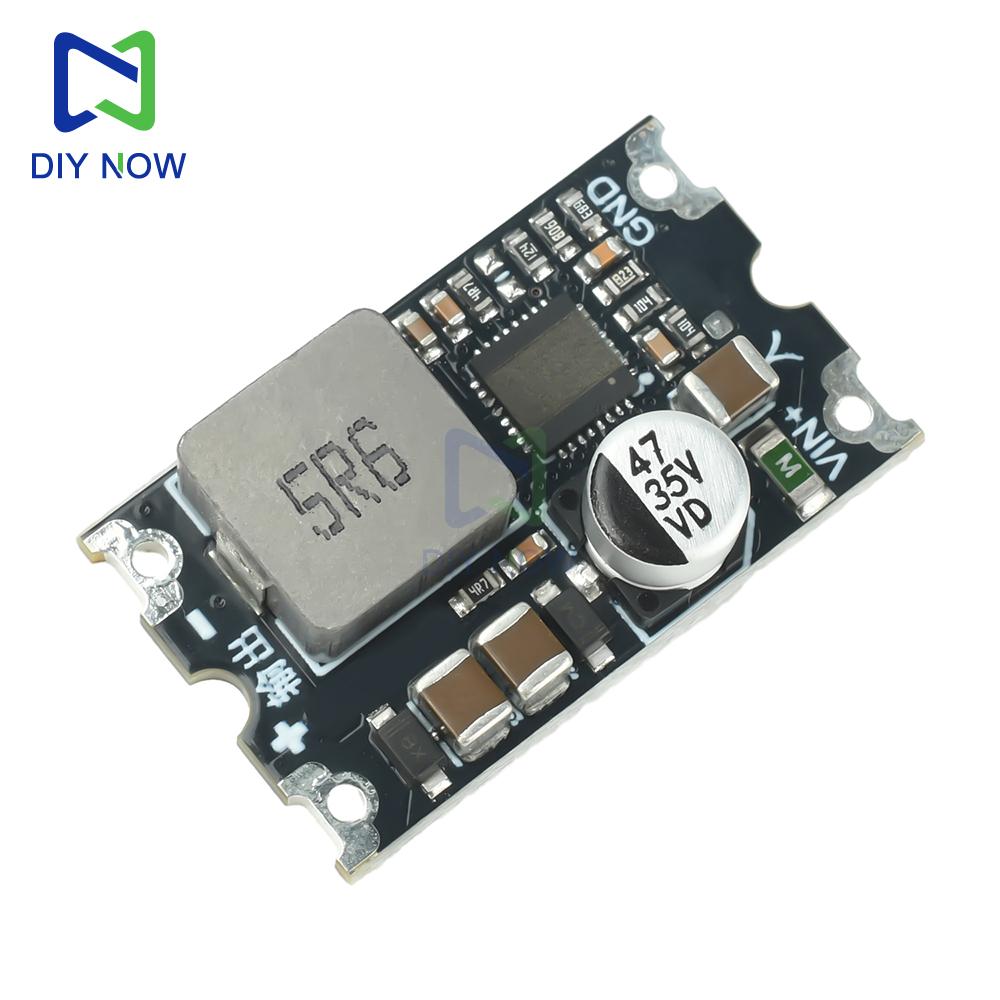

DC-DC Step-Down Module DC6-35V to 5V/12V 8A High-Performance Low Internal Resistance Regulator Board 500kHz Low Ripple

Quantity : 1 High-concerned chemical : none Package : SOP Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

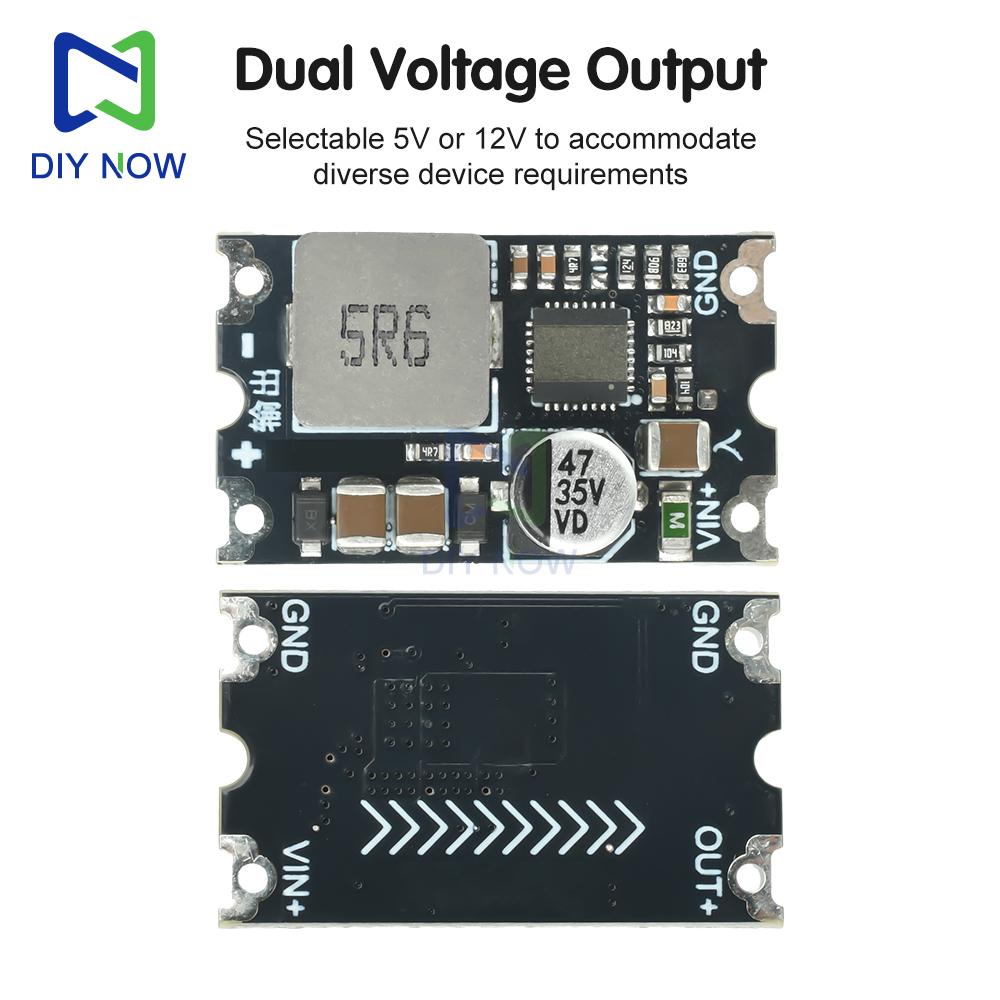

Product Features 1. Wide Input Voltage: 6V–35V, compatible with various power systems 2. Dual Voltage Output: 5V or 12V selectable, meeting diverse equipment needs 3. High Current Output: Up to 8A, strong load capacity 4. High Efficiency and Low Heat: Conversion efficiency up to 95%, low temperature rise, stable operation 5. Multiple Protections: Input with TVS and fuse, over-temperature protection

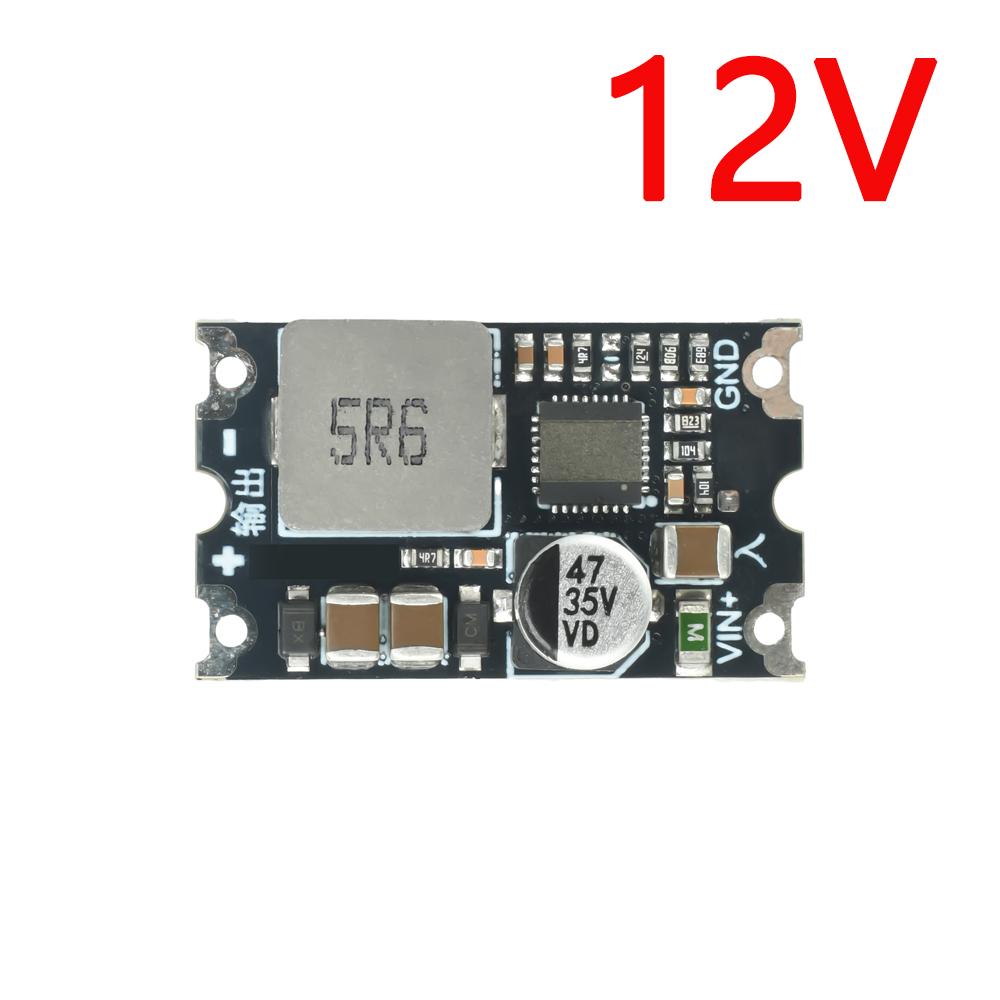

Product Parameters Input Voltage: DC6-35V (must be 1V higher than output) Output Voltage: 5V/12V (selectable) Output Current: Maximum 8A Quasi-current: 2-25mA Operating Temperature: -40°C-85°C Up to 95% Conversion Efficiency Maximum 500kHz Low Ripple

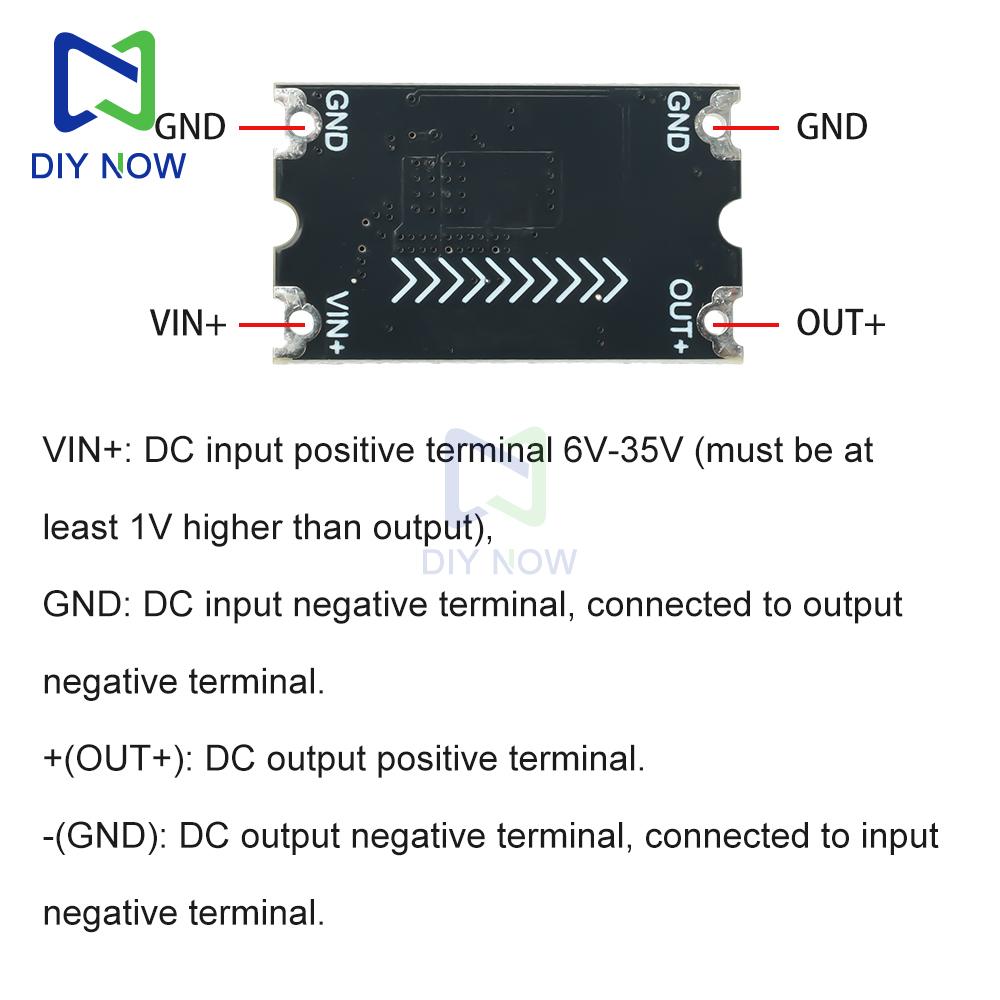

Precautions 1. The product input voltage must be greater than the output voltage, ideally maintaining a voltage difference of more than 1V. The input must not be reversed, as this will damage the board. 2. It is best to disconnect the power supply when wiring, otherwise, when the voltage is high, sparking may occur, which may damage the chip. 3. Wiring should not be too thin; ensure the wires can withstand the corresponding current. Provide proper protection for inductive loads to prevent excessive back electromotive force exceeding the chip's tolerance. 4. The higher the module's power rating and the closer the current is to the maximum, the greater the heat generation will be. Pay attention to heat dissipation during use.

Package List: Module *1 label:yes
