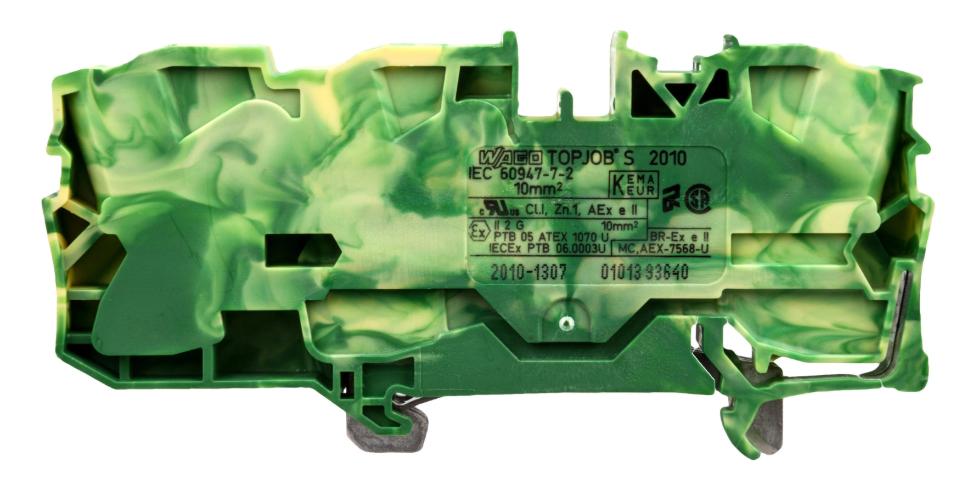

3-Wire Protective Rail Connector 10Mm2 Yellow-Green 2010-1307 Topjobs

Length [mm]: 57

Manufacturer's index: 2010-1307

Insulating material flammability class according to UL94: V0

Cross-section of connected solid wire [mm2] up to: 10

Connectable cross-section of solid wire [mm2] from: 0.5

Connectable cross-section of stranded wire without ferrule: 10

Connectable cross-section of stranded wire with ferrule: 10

Connectable cross-section of multi-core wire [mm2] up to: 10

Connectable cross-section of multi-core wire [mm2] from: 0.5

Type of electrical connection 1: Spring terminal

Type of electrical connection 2: Spring terminal

series: 2010

Width / grid size [mm]: 7.5000

Height at lowest mounting position [mm]: 33

Operating temperature range [°C] to: 105

Operating temperature range [°C] from: -35

CN: 85369010 Length: 90 EAN: 4017332076340 PEN function: Yes Color: Green-yellow Number of levels: 1 Number of terminals per level: 3 Connection position: From above/top Type of insulating material: Thermoplastic Mounting method: DIN mounting rail 35 mm Width: 45 Weight: 0.0400 Closing plate required: Yes Height: 10
