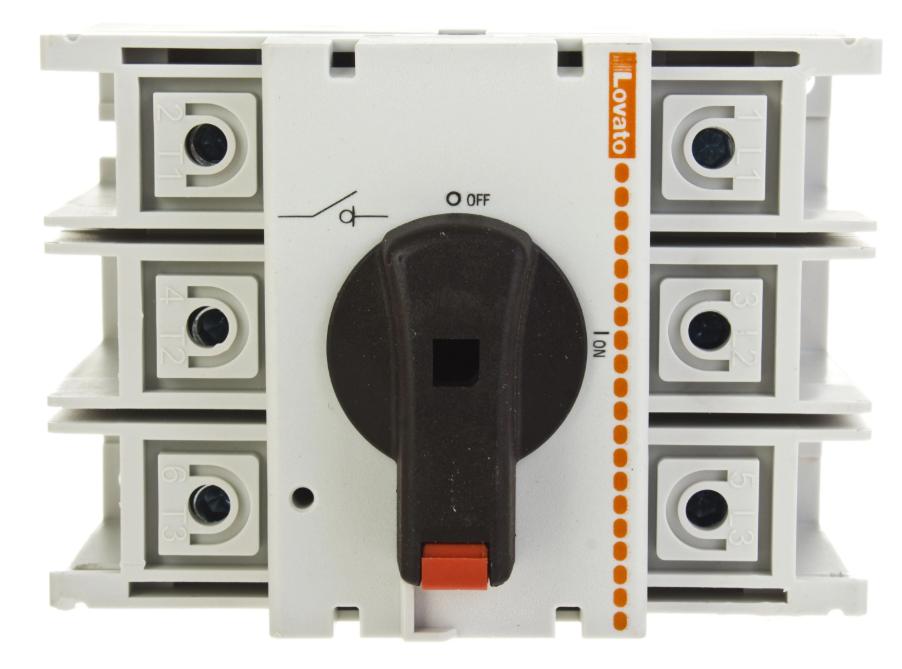

Switch Disconnector 3P 80A Ga080A

Manufacturer's index: GA080A

Maximum rated operating voltage Ue AC [V]: 690

Suitable for front mounting 4-hole: No

series: GA switch disconnectors

Degree of protection (IP) of the front part: IP40

Built-in motor drive: No

Rated operating power for AC-23, 400 V [kW]: 45

Rated continuous current Iu [A]: 80

Device construction: Fixed device CN: 8536508000 Length: 100 EAN: 8013975177624 As a safety switch: No As a main switch: Yes As a compact switch: No As a service switch: Yes As an emergency stop switch: No Number of poles: 3 Number of auxiliary changeover contacts: 0 Number of auxiliary break contacts: 0 Number of auxiliary contacts making contact: 0 Suitable for installation in distribution boards: Yes Suitable for front mounting central: No Suitable for intermediate mounting: No Suitable for flat mounting: No Optional motor drive: No Optional voltage release: No PKWiU: 27.33.11.0 Type of switching element: Knob Type of main circuit connection: Screw connection Width: 82 Weight: 0.4000 Height: 80 With locking mechanism: Yes
