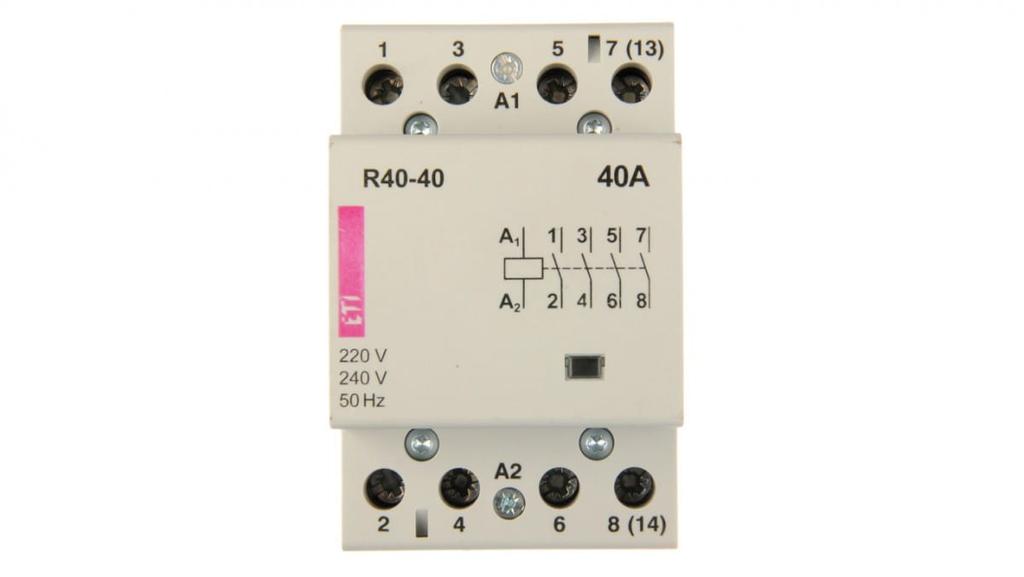

Modular Contactor 40A 230V Ac 4Z 0R R 40-40 002463410

Installation depth [mm]: 43.5000

Manufacturer's index: 002463410

Maximum switching capacity for fluorescent lamps (compensation): 5280

Maximum switching capacity for fluorescent lamps (with compensation: 1320

Maximum switching capacity for fluorescent lamps [VA]: 2310

Maximum switching capacity for incandescent lamps [W]: 3500

series: ETICON

Degree of protection (IP): IP20

Rated operating voltage from/to [V] up to: 400

Rated operating voltage from/to [V] from: 230

Rated excitation voltage [V]: 230

Rated operating current [A]: 40

CN: 85364900 Length: 90 EAN: 5904722903531 Usage category: 1 Number of modules: 3 Number of NC contacts: 0 Number of NO contacts: 4 Possibility of additional equipment: Yes PKWiU: 27.12.23.0 Type of control voltage: AC Type of supply voltage: AC Slider for manual operation: No Width: 65 Weight: 0.3600 Height: 55
