Rosfix Mega Set Painting Unit Rosfix Strong Blue Storm Sbs03 3500W 22Mpa 18L/Min With Accessories

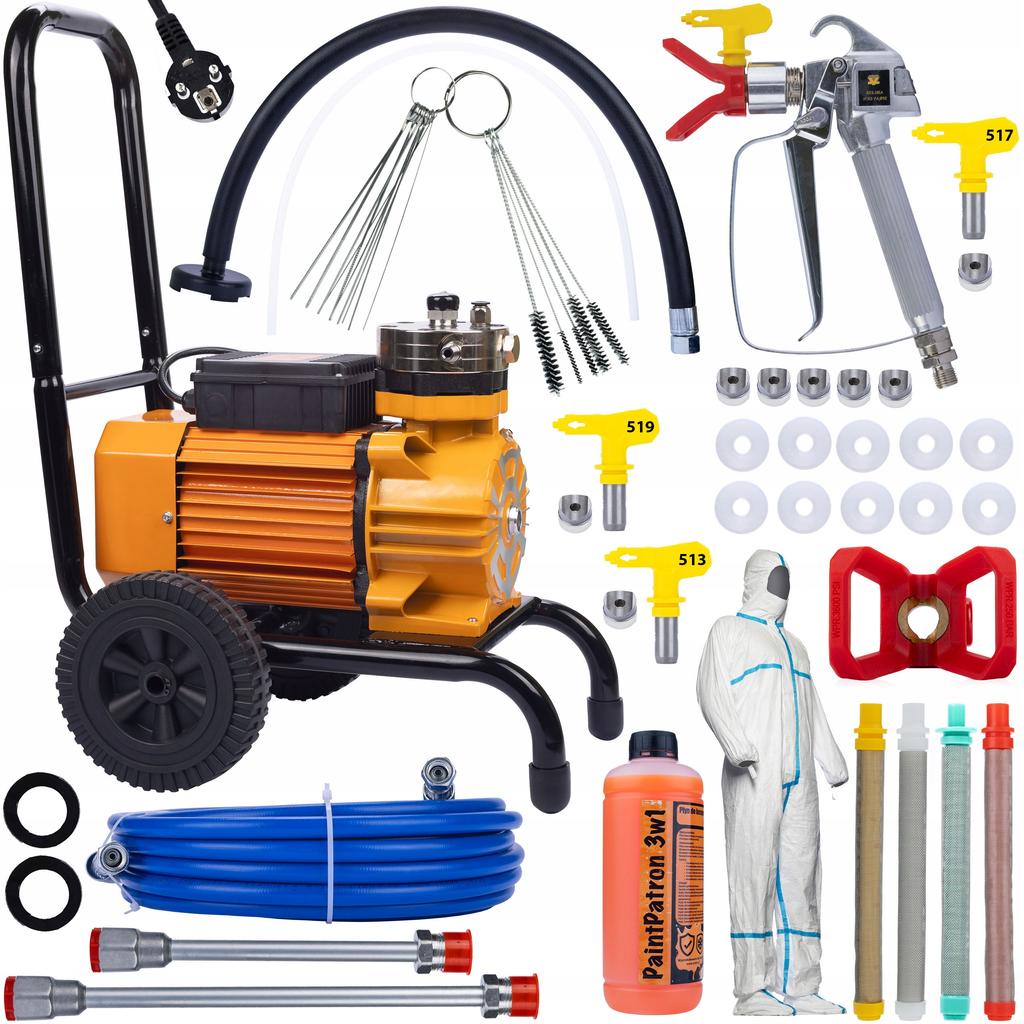

✳️ The set includes:

2️⃣ 5x Socket / cover gasket Nozzle

7️⃣ 4x finger filter (yellow, white, green, red)

✅ Power and Efficiency:3500W brushless motor for high performance. Large-scale atomization, allowing for coverage of 300-500 square meters in one hour.

✅ Durability and Resistance: Uses a 304 stainless steel pump, resistant to temperature and corrosion.

✅ Safety and Comfort: Overheat protection, allowing for 24-hour non-stop operation. Automatic pressure release when the gun is closed, ensuring safe operation.

This tool will certainly make your work easier, ensuring even and precise surface coverage.

‼️ Before use, ensure the hydraulic oil level in the tank is adequate.

WARNING! Following these recommendations is crucial for the safety and effectiveness of using the unit.‼️

❗️❗️❗️ Various types of nozzles, filters, hoses, guns, lances and necessary accessories available in our offer!

✳️ Technical Data:

✔️ Motor Power: 3500W

✔️ Voltage/Frequency: 220V/50Hz

✔️ Maximum Working Pressure: 22MPA

✔️ Maximum Supported Nozzle Size: 0.025 inch

✔️ Connector Output: 1/4 inch

✳️ Equipment:

✔️ Spray Gun

✔️ 1x Nozzle seal

✔️ 1x 60mesh filter (mounted in the gun)

✔️ 1x Nozzle guard

✔️ Manometer for pressure measurement

❗️❗️❗️ Various types of nozzles, filters, hoses, guns, lances and necessary accessories available in our offer!

With the Rosfix Blue Storm SBS03, you can achieve stunning results and enjoy a beautiful finish on any surface.

✅ Equipped with an advanced 3500W brushless motor, it guarantees not only impressive performance but, above all, an incredibly smooth, factory-like finish.

The maximum flow rate of 18 l/min allows for quick and efficient finishing of even the largest surfaces.

✅ Its elegant design makes it not only functional but also aesthetically pleasing to the eye.

✅ The most important feature of this sprayer is its incredible power. This allows you to achieve a professional, even, and smooth finish on surfaces, regardless of their size or type.

It features ergonomically designed handles, allowing for intuitive and comfortable use.

Regardless of the project, Rosfix Strong Blue Storm is ready to meet all your requirements.

It produces professional results, guaranteeing a high-quality surface finish.

This tool allows you to quickly and efficiently cover large surfaces, which is crucial for projects like this.

A maximum flow rate of 18L/min allows for quick and efficient finishing of even the largest surfaces.

✅ Powerful cooling and overheating protection allow you to maintain performance regardless of the working time.

✅ High temperature and corrosion resistance thanks to the pump made of 304 stainless steel.

✳️ You can find additional spare parts in our store (SKU):

• Finger filters for the gun: 5A2B-1414B, 0562-796DB, 9279-1699A, FHV6-AHE1

• Diaphragm assembly: Y97O-PM4Y

• Diaphragm: JDPS-REBW

• Piston bearings: DXJO-KZ8I

• Piston spring: 78D3-96JC

• Valve repair kit: 5FSI-CUJJ

• Oil sight glass: F1I2-8ICW

• Wheel: ER9I-T57Z

• Air valve: QZ7P-41X

• Suction pipe: AQK4-LNG1

• Overflow valve: OVDU-9DRB

• Overflow connector: WGP1-L43P

• Block (bottom cover) with valve and piston: J2SR-SODM

• Reservoir Oil: 6IR6-68LW

• Diaphragm Case Assembly with Valve: F4OW-T8F9

• Additional Gun: N0K3-E2BH, RYQU-OC2R, AE4C-35111

• Hose: 5540-5597A, 4790-4610C, B94E-343C5, B929-992A1, CEC8-28863, D17F-566D4 (can be connected with Z8MC-DDUK coupler)

✳️ Nozzle hole range for different types of sprayed material:

✔️ Pigments: Nozzle holes with a diameter of 0.009 inches are suitable for spraying pigments, which allows for a precise and even application of color on the surface.

✔️ Stains, Varnishes, Oils: When spraying stains, varnishes and oils, it is recommended to use nozzle holes with a diameter between 0.009 and 0.011 inch. This range allows for effective atomization of these materials while ensuring a quality finish.

✔️ Primer: Nozzle orifices of 0.013 inch diameter are recommended for spraying primers, allowing for quick and effective coverage of the surface with a primer coat.

✔️ Urethanes, Epoxies: Spraying urethanes and epoxies requires nozzle orifices between 0.013 and 0.015 inch diameter. This range ensures even and effective surface coverage with these materials.

✔️ Enamels, Emulsions: Nozzle orifices with a diameter of 0.015 inch are suitable for spraying enamels and emulsions, enabling effective atomization of these materials.

✔️ Acrylics: For acrylics, it is recommended to use nozzle orifices with a diameter between 0.015 and 0.019 inch. This range allows for efficient application of acrylics and an even coating.

✔️ Latex: Spraying latex requires nozzle orifices with a diameter between 0.017 and 0.019 inch. This range allows for effective latex coverage, ensuring an even and durable finish.

This range ensures effective spraying of these materials over larger surfaces.

✔️ Waterproofing: Spraying waterproofing requires nozzle openings between 0.023 and 0.031 inches in diameter. This range allows for effective surface coverage with waterproofing, providing protection against moisture.

✔️ Fireproofing: Spraying fireproofing requires nozzle orifices between 0.029 and 0.035 inches in diameter. This range allows for effective spraying of these materials, providing fire protection.

✔️ Elastomers: Nozzle orifices between 0.025 and 0.033 inches are suitable for spraying elastomers, allowing for effective surface coverage with these materials.

✔️ Putties and plasters: Spraying putties and plasters requires nozzle orifices between 0.027 and 0.035 inches in diameter. This range allows for even and effective spraying of these materials, facilitating the finishing process.

✔️ Bituminous compounds: For bituminous compounds, it is recommended to use nozzle holes with a diameter between 0.055 and 0.065 inches. This range allows for effective spraying of these compounds over larger surfaces.

These are recommendations for appropriate nozzle holes for different types of sprayed material.

❗️❗️❗️ Various types of nozzles, filters, hoses, guns, lances and necessary accessories available in our offer!

✔️ Nozzle fan width: The first number indicates the width of the fan you want to create. You can calculate this by multiplying the first number by 5 cm. For example, if the first number is 5, the fan width would be 5 x 5 cm = 25 cm.

This means that if you hold the gun 30 cm from the surface, you would get a fan width of 25 cm.

With the Rosfix Strong Storm SS02, you can achieve stunning results and enjoy a beautiful finish on any surface.

✅ Equipped with an advanced 3500W brushless motor, it guarantees not only impressive performance, but above all, an incredibly smooth, factory-like finish.

• Steel Surfaces:

• Wood:

• Exterior and Interior Structural Elements:

• Bridge Structures:

The ergonomic handle ensures comfort even during prolonged use.

✅ 517 nozzle: The additional 517 nozzle allows for an even and smooth surface finish.

✳️ Specification:

✔️ Maximum pressure: 248 bar (3600psi)

✔️ Trigger: 4-finger

✔️ Max machine unloading pressure flow: 8 l/min

✔️ Max machine spraying flow: 4 l/min

✔️ Hose connection thread: 1/4"

✔️ Head thread: 7/8"

✔️ Built-in filter: YES

✳️ Included:

✔️ Cover nozzle

✔️ Nozzle 517

Rosfix Ultra Spray Nozzle Model 517

⭐ Model 517 with a width of 27cm spray pattern at a distance of 30cm, designed for acrylic and latex.

⭐ Spray width: The nozzle has a spray width of 25cm, which allows for effective coverage of larger areas.

✅ Cover Springs: Specially designed cover springs protect the hose from kinking and breaking, keeping it in perfect condition.

✅ Swivel Connections: Swivel connections allow for hassle-free connection of the gun and sprayer, ensuring freedom of movement and reducing hose twisting.

✅ Easy Cleaning: The hose is very easy to clean, which allows you to keep it clean and reliable for a long time.

✅ Finger Filters:

The red 200 mesh filter has a dense mesh, which means it effectively retains even very fine impurities.

☑️ Dilutes with water: Possibility to adjust the concentration to individual user needs.

☑️ Protects the pump against frost: Effective protection against freezing, ideal at low temperatures.

✳️ Specification:

✔️ Capacity: 1l

✔️ Use: Undiluted - as a lubricant and antifreeze, diluted with water 1:3 - as a preservative.

✔️ Color: orange

✔️ Suitable for both piston and diaphragm units.

Ideal for professionals requiring reliable protection and efficiency of their equipment in all conditions!
