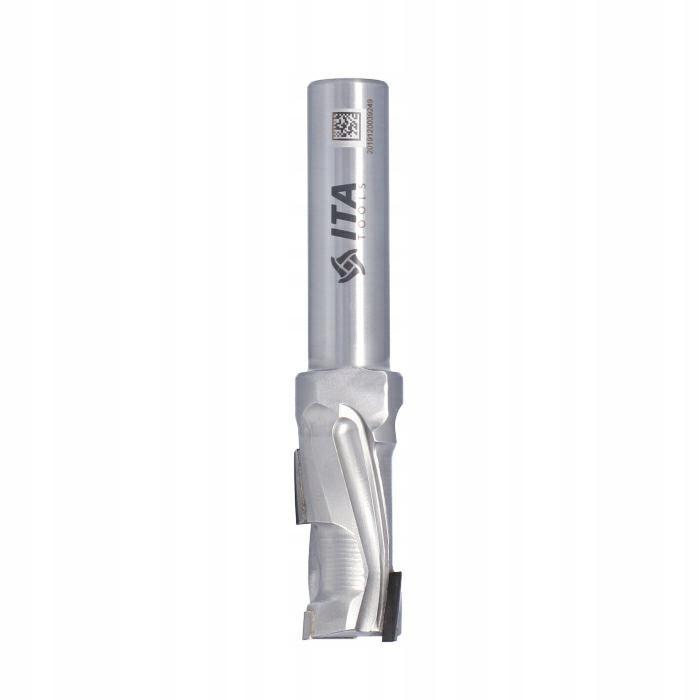

Diamond Cutter Z1+1 D16 I25 S12 Itatools/ Mdf

ITA TOOLS DIA ECO MILLING CUTTER / HM BODY / 3 spirals

DIA milling cutter with PCD (PKD / Industrial Diamond) blades mounted in a spiral on carbide seats. The body is made of the highest quality steel. For use on CNC or top spindle milling machines. The appropriate blade geometry means that the teeth press the upper laminate from above and the lower laminate from below, which minimizes laminate tearing.

- used when working with wood, chipboard, MDF, and plastics. It has a HM drilling blade.

• Diameter (D [mm]): 16.00

• Working height (I [mm]): 25.00

• Shank diameter (S [mm]): 12.00

• Total length (L [mm]): 87.00

• BODY (BODY): STEEL

• Number of teeth (Z): 3 PCD + 1 HM

• Rotation (ROTATION): RH - right

ADVANTAGES / BENEFITS / SPECIAL FEATURES:Perfect finishing of the processed edge, quiet operation

MADE IN POLAND

Sharpening: 2/3 times DIA plate height: 2.5 mm APPLICATION: For cutting and formatting materials such as chipboard, laminated on one or both sides or covered with a film melamine, MDF
