For 4 Points G1/2 Interface Water Heater Water Dispenser Dispenser Hall Flowmeter YF-S201 Flow Sensor

Electric : No High-concerned chemical : none Size : 6*40 mm Model Number : GMWFS-201 Brand Name : XMSJ Origin : Mainland China Type : Electric Water Heater Parts

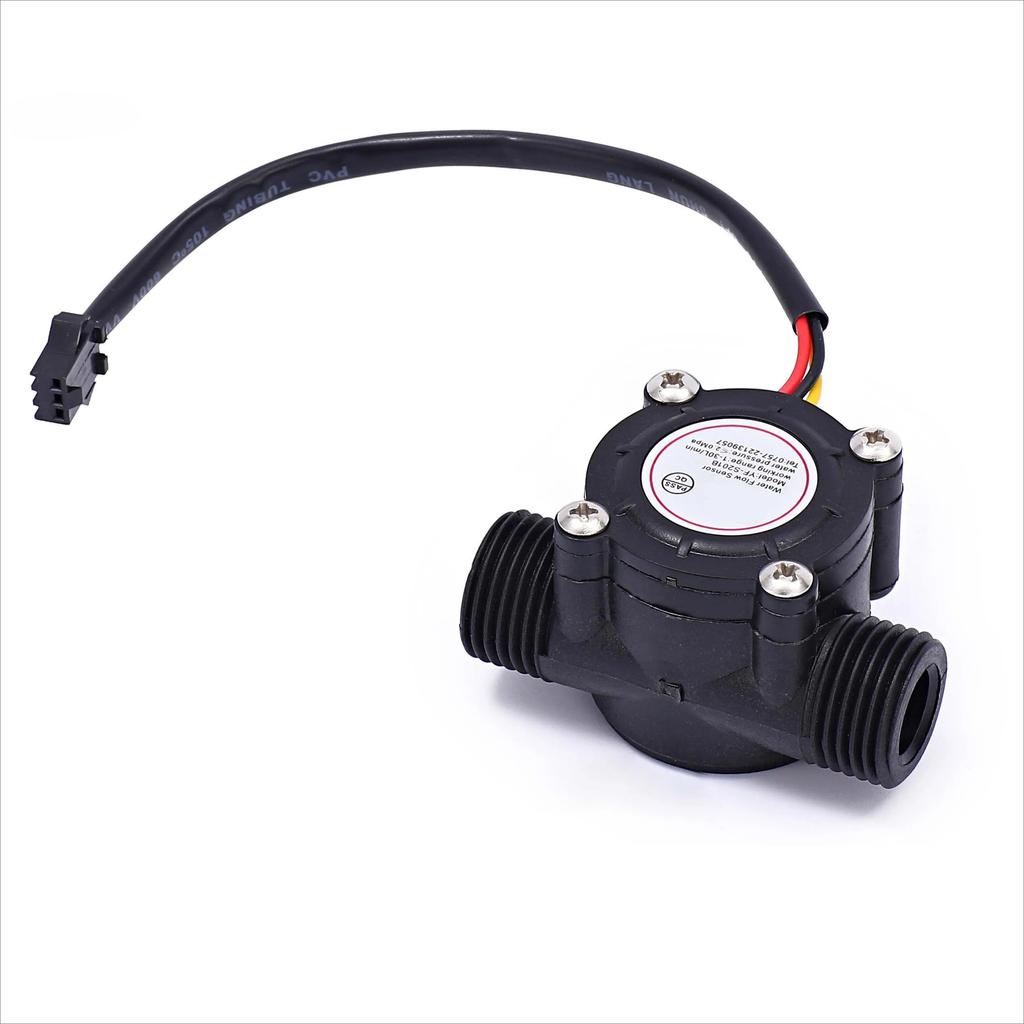

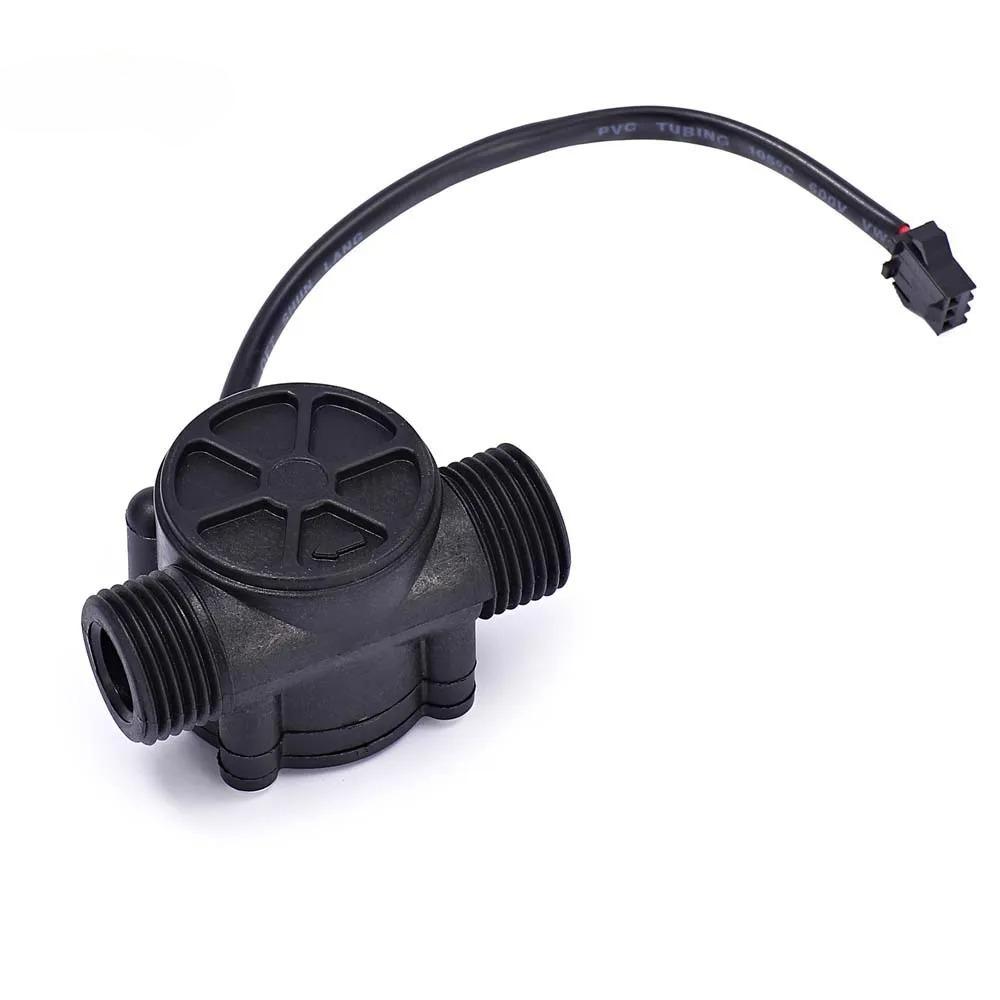

The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly and a Hall sensor. It is installed at the water inlet end of the water heater to detect the water flow. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow. The Hall sensor outputs the corresponding pulse signal, which is fed back to the controller. The device judges the size of the water flow and controls it. Features: 1 This product is light and flexible in appearance, small in size, and easy to install. 2 The inside of the impeller is inlaid with stainless steel beads, which are always wear-resistant. 3. The sealing ring adopts the structure of upper and lower force and never leaks. 4 The Hall element is imported, and it is reinforced with waterproof rubber ring to prevent water from entering, and it will never age. 5 All raw materials are in line with ROHS testing standards 6 Standard G1/2 screw interface installation is simpler and firmer

Technical parameter Scope of application: Suitable for water heaters, credit card machines, automatic water vending machines, and other flow measurement equipment! 1. Minimum rated working voltage 2. Maximum working current 3. Working voltage range 4. Load capacity ,Operating temperature range Number 16. Use humidity range 7. Allowable pressure 8. Storage temperature 9. Keep humidity DC4.5 5V 15mA (DC 5V) DC 5~18V <10mA (DC 5V) <80°C 35% ~ 90%RH (non-frost state) water pressure below 1.75Mpa -25~ +80°C 25%~ 95%RH Precautions for use: Severe impact and chemical erosion are strictly prohibited. · Throwing or collision is strictly prohibited. The medium temperature should not exceed 120 degrees
