Product selling points:
1. Current, voltage, power, power, capacity, capacity, resistance, timing time, number of capacity groups, Celsius, Fahrenheit, rapid identification and many other parameters, a screen display of a variety of parameters.

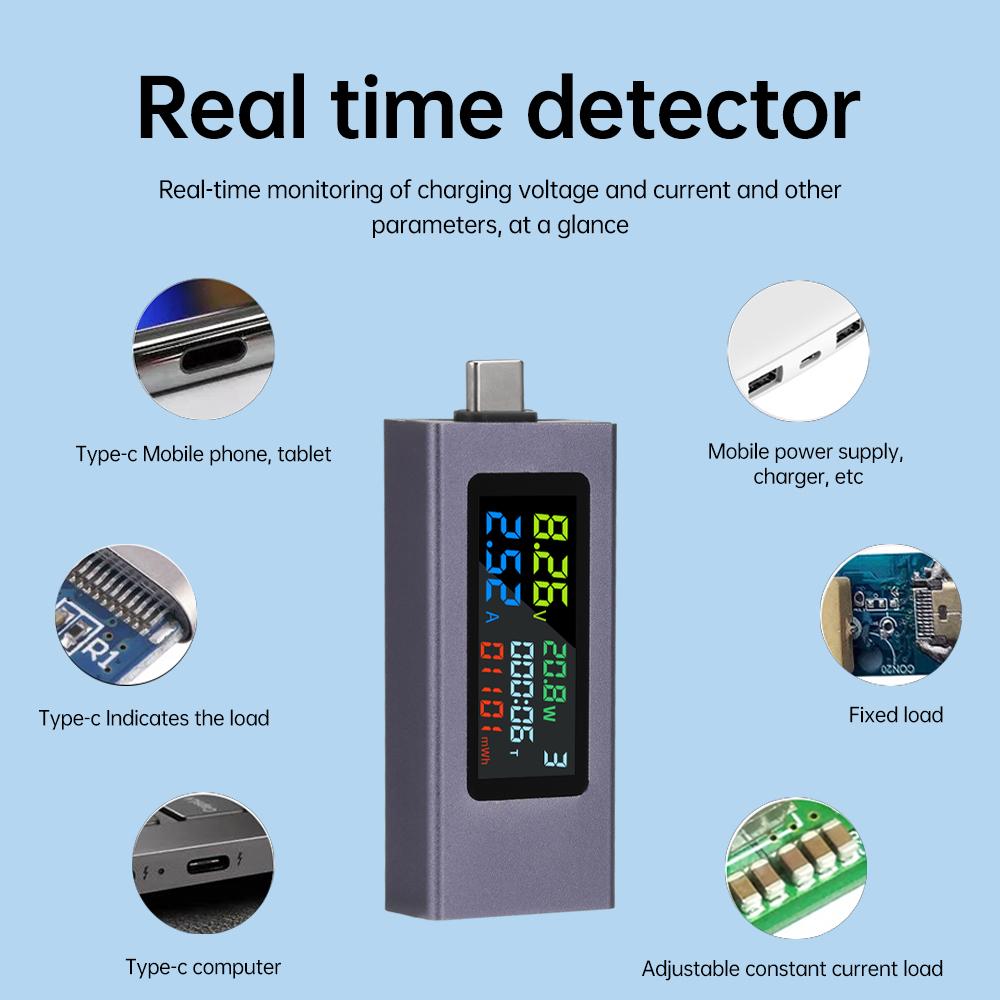

2. You can detect the charging status of the electrical appliances in real time, real-time monitoring of the charging voltage and current and many other parameters of information at a glance.

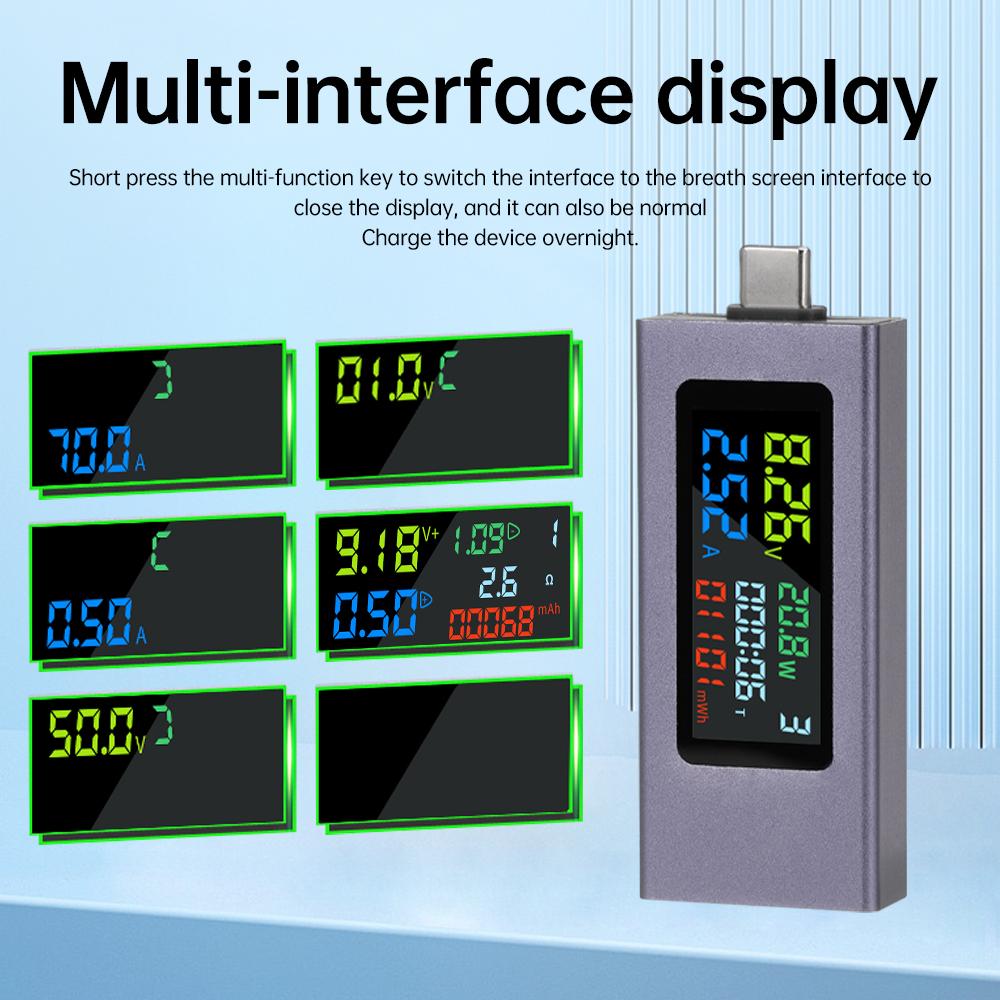

3. Display on/off function: through the multifunctional key short press switch interface to the rest screen interface for the off display, can also be normal to the device charging night charging.
4.Easily test a variety of chargers, data cables, rechargeable batteries, notebooks, mobile phones, Type-C digital devices and so on.

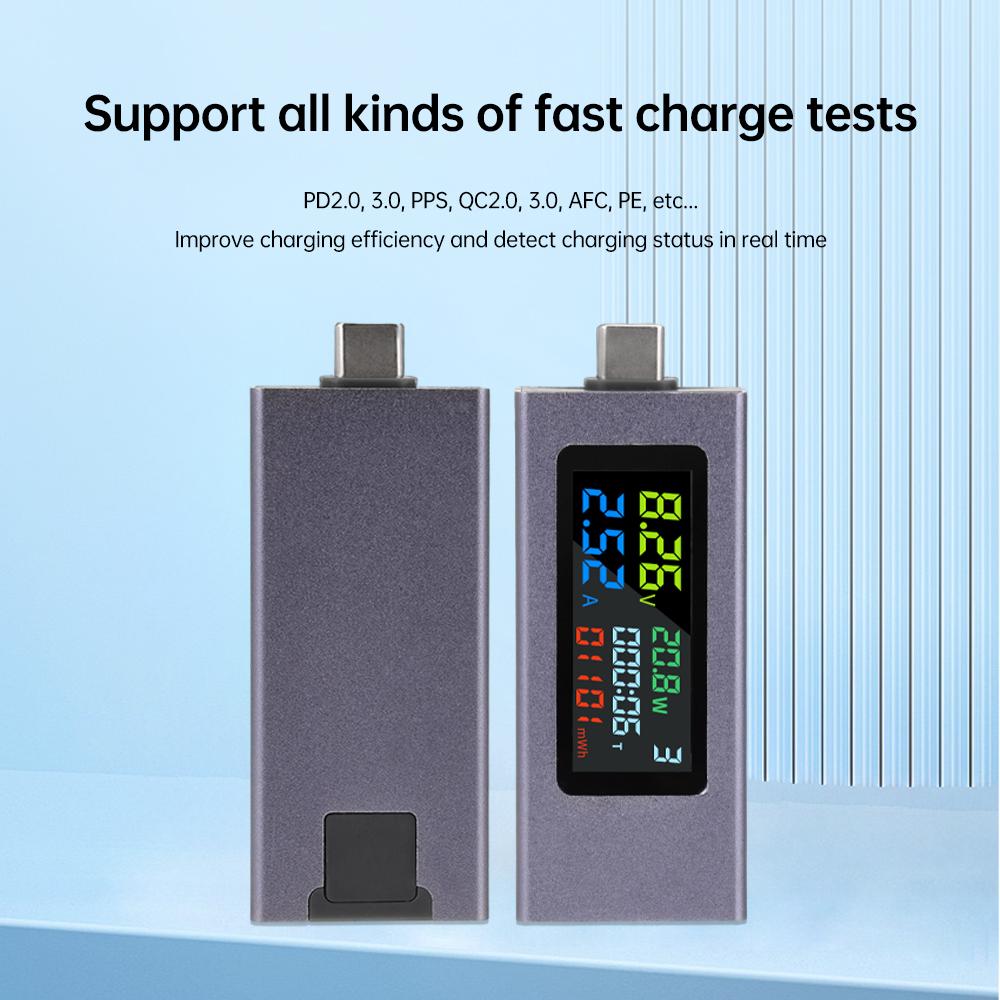

5. A variety of fast charging protocols automatically detect, support PD2.0, 3.0, PPS, QC2.0, 3.0, AFC, PE, etc., to improve the charging efficiency, real-time detection of charging status.
Product Parameters:
Voltage measurement range: DC 4.5~50V
Current measurement range: 0-5A/0-8A (generally display 0-5A, maximum can display 8A)
Capacity Accumulation Range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes
Input interface: Type-C interface
Output Interface: Type-C
Refresh time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true-colour digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa
Product size: 74*28*13mm
Multi-function key operation instructions:
Short press mode button
1: is switching screen
2: Quickly triple-click the switch button to reset the power to zero (mWh) and reset the timing to zero the current group (0.00)
3: Long press the switch key for 2 seconds to change the cumulative data storage group number (NO.X)
Type-C connector input = Type-C connector output. Note: Type-C connector without load will not be displayed
Packing list:
Voltage and current meter *1
