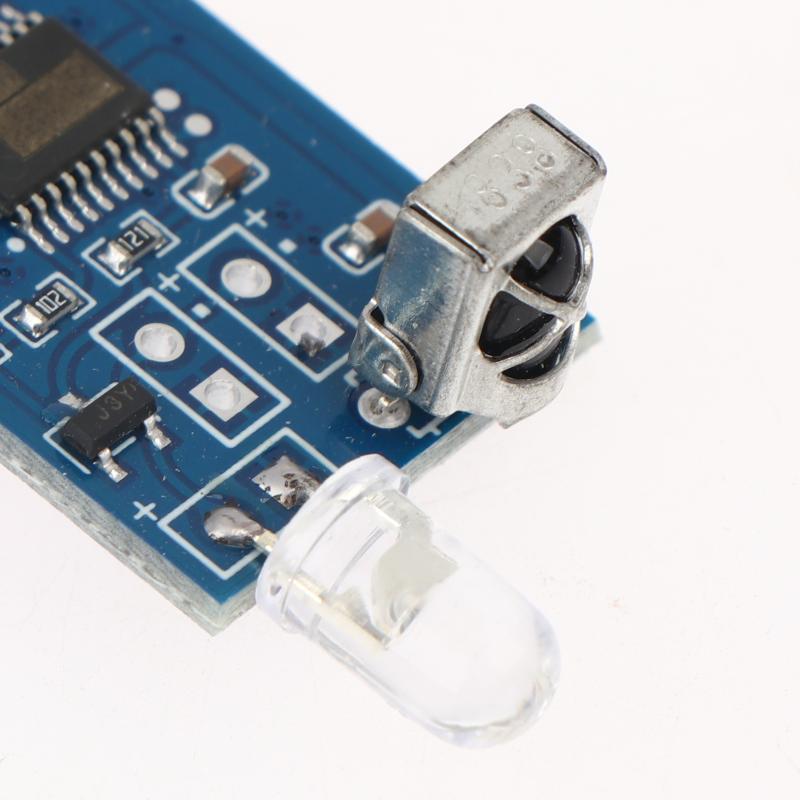

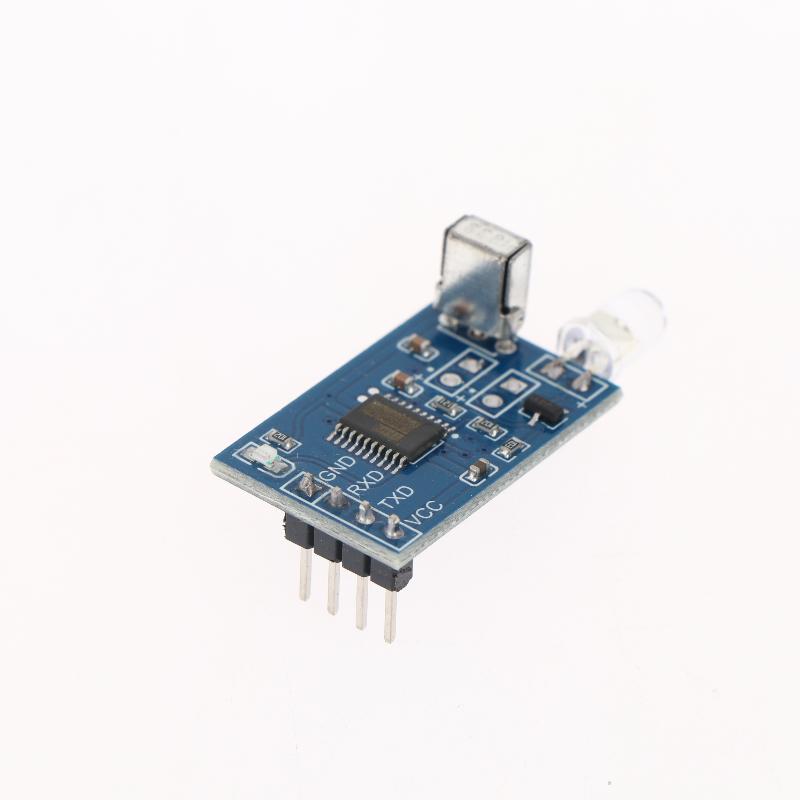

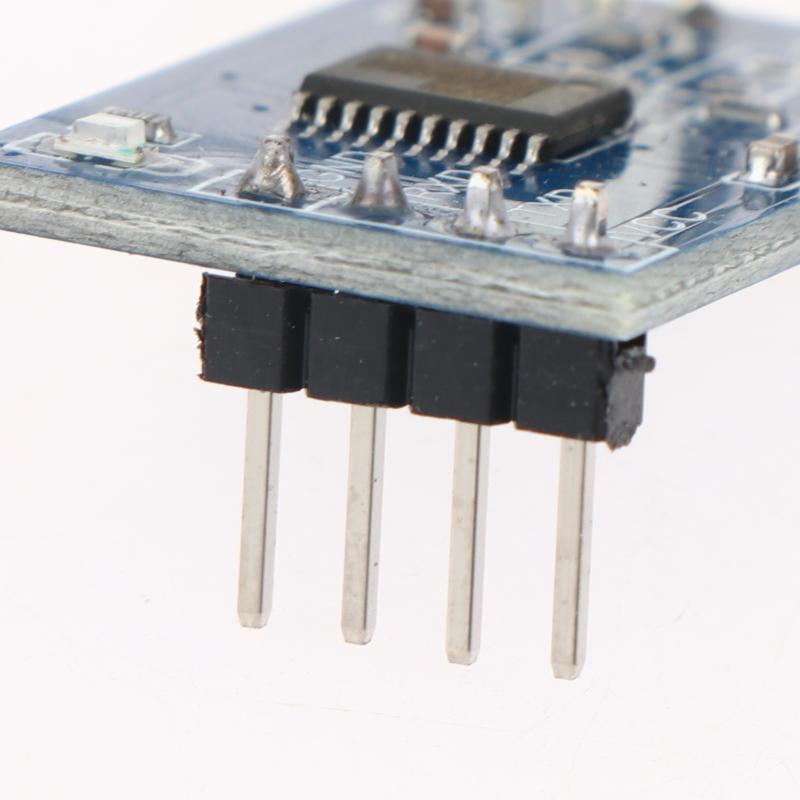

Infrared Decoding Encoding Communication Module Infrared Transceiver Wireless

1, Function Description 1. Equipped with format infrared emission function. 2. Equipped with format infrared encoding function. 3. Equipped with an infrared emitter expansion interface. 4. Equipped with serial communication function, the communication level is TTL. 5. Can control 99 of infrared format devices, including electronic appliances such as televisions and fans. 6. Support encoding : (Typical encoding such as uPD6121, uPD6122, TC9012, as well as numerous compatible chip models such as PT2221, PT2222, SC6121, SC6122, SC9012, etc.) 7. Can be used for infrared wireless data communication, data transmission, infrared control and functions 2, Application scope Smart Home Student Electronic Design Infrared to Wireless Intelligent Industrial Control Equipment MP3 controller remote infrared control infrared decoding device electronic building block kit Electronic device control wireless to infrared design infrared encoding device intelligent car remote control 3, Usage method The usage of this module is very simple. Below are explanations for electronic and non electronic majors: Electronic major: Just use the serial communication knowledge of the microcontroller to send specified instructions through the serial port to control module transmission; Perform infrared encoding operation through serial port reception to obtain remote control encoding information. Decoding: No instructions need to be sent during decoding, just pick up the remote control and aim it at the receiving head of the module, and press it. At this point, the module's serial port will output the infrared code. Encoding (transmission): During encoding, instructions need to be sent according to a certain format. By sending a 5-byte instruction through a computer or microcontroller serial port, the corresponding encoded infrared signal can be restored. By utilizing the infrared transceiver function, we can perform infrared data transmission and control. By purchasing two sets, we can complete the transceiver operation. Non electronic majors: If customers do not understand microcontroller knowledge, they can use our store's USB to TTL conversion combined with a computer to control devices. After connecting the circuit, the computer's upper computer software can easily send and receive instructions and achieve encoding and decoding functions Package Included:1PCS The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
